Front Door Glass Installation

Install the glass in the door and position the glass within the window regulator.
CAUTION: Dissimilar metals in direct contact with each other may corrode rapidly. Make sure to use the correct fasteners to prevent premature corrosion.
Install the glass to the window regulator with the screws.
1. Tighten the glass screws to 7 N.m (62 lb-in).
Install the B-pillar molding. Refer to B-PILLAR MOLDING INSTALLATION .
Install the door seal trim. Refer to DOOR SEAL TRIM INSTALLATION (FOR FRONT DOOR) .

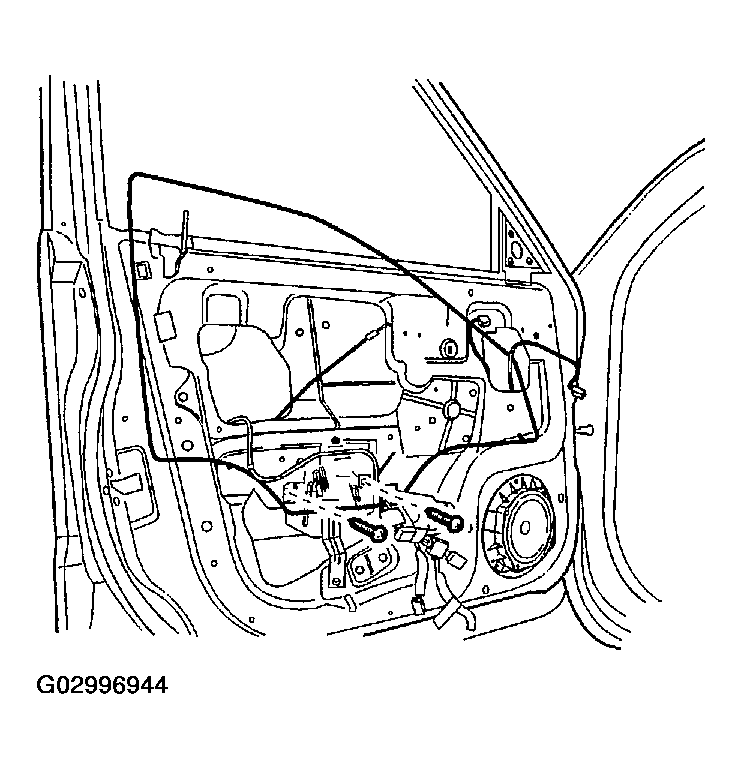

Fig 1: Tightening Glass To Window Regulator
Courtesy of SUZUKI OF AMERICA CORP.
