Repair and Diagnosis
›
Electrical
›
Charging Systems
›
Generators & Regulators
›
Wiring Diagrams
Wiring Diagrams

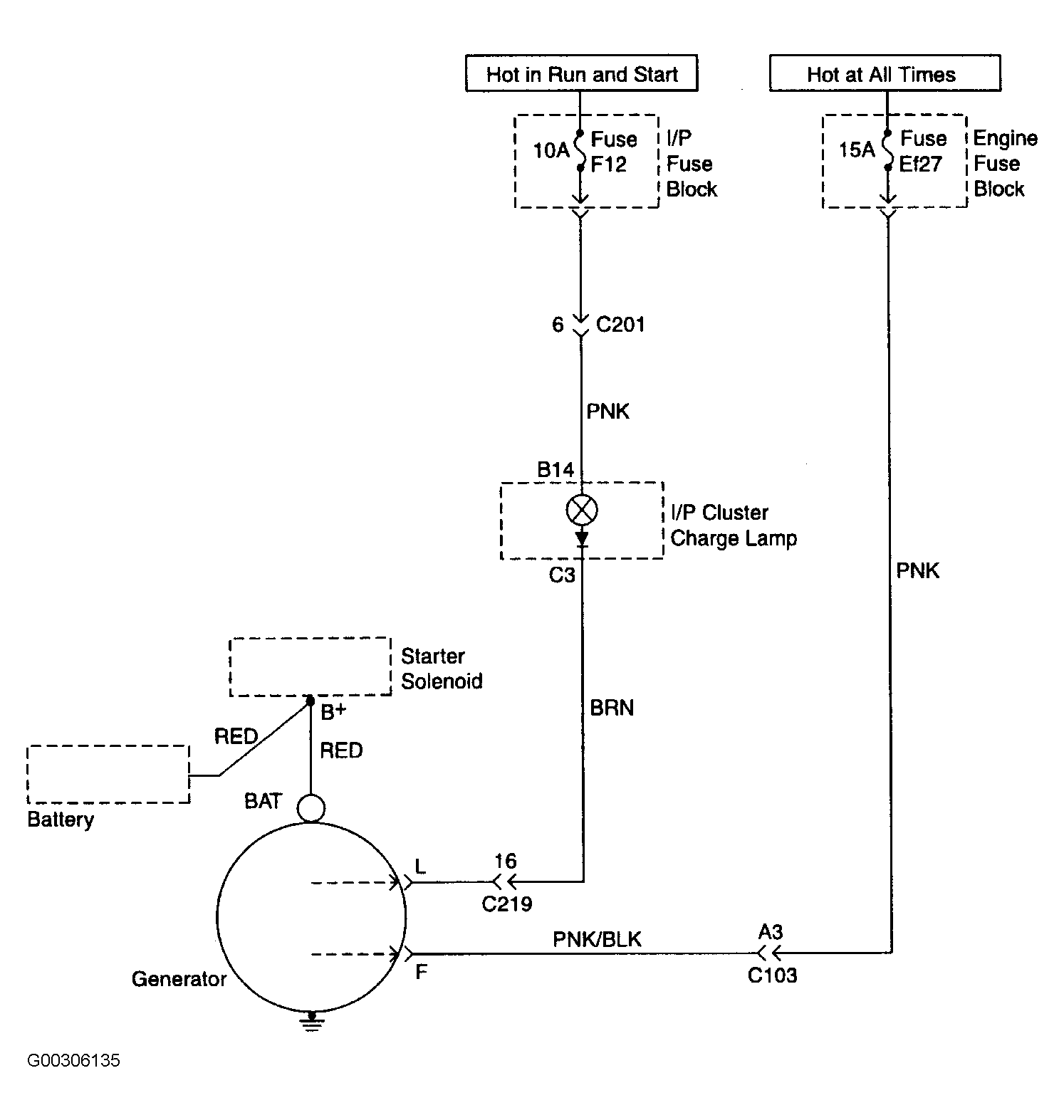

Fig 1: Charging System Wiring Diagram (2004 Verona)
Courtesy of SUZUKI OF AMERICA CORP.
Courtesy of SUZUKI OF AMERICA CORP.
