DTC P0107: Manifold Absolute Pressure Sensor Low Input
›
Notes
DTC P0107: Manifold Absolute Pressure Sensor Low Input: Notes

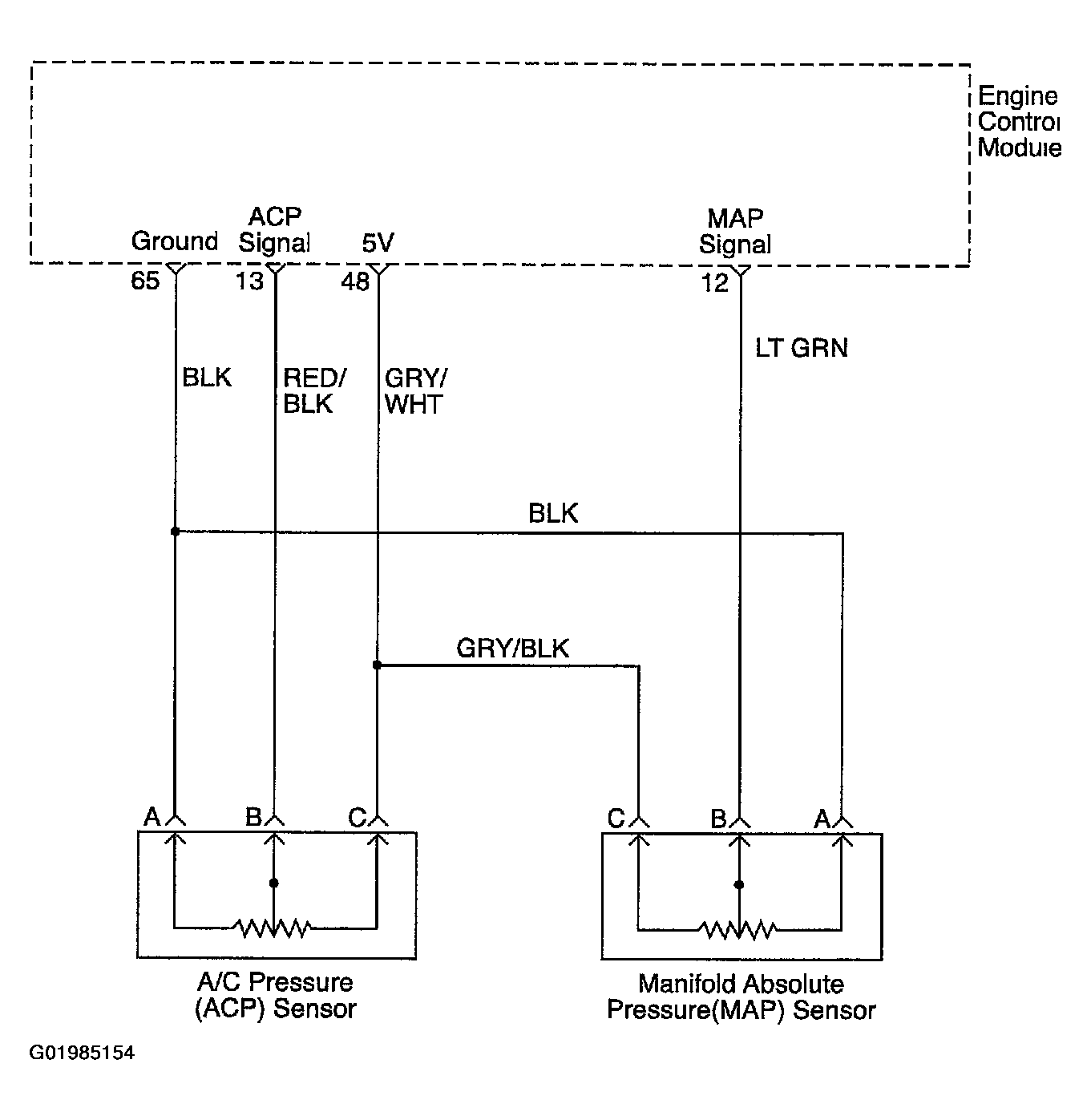

Fig 1: DTC P0107: Manifold Absolute Pressure Sensor Low Input - System Wiring Diagram
Courtesy of SUZUKI OF AMERICA CORP.
