DTC P0112: Intake Air Temperature Sensor Low Input
›
Notes
DTC P0112: Intake Air Temperature Sensor Low Input: Notes

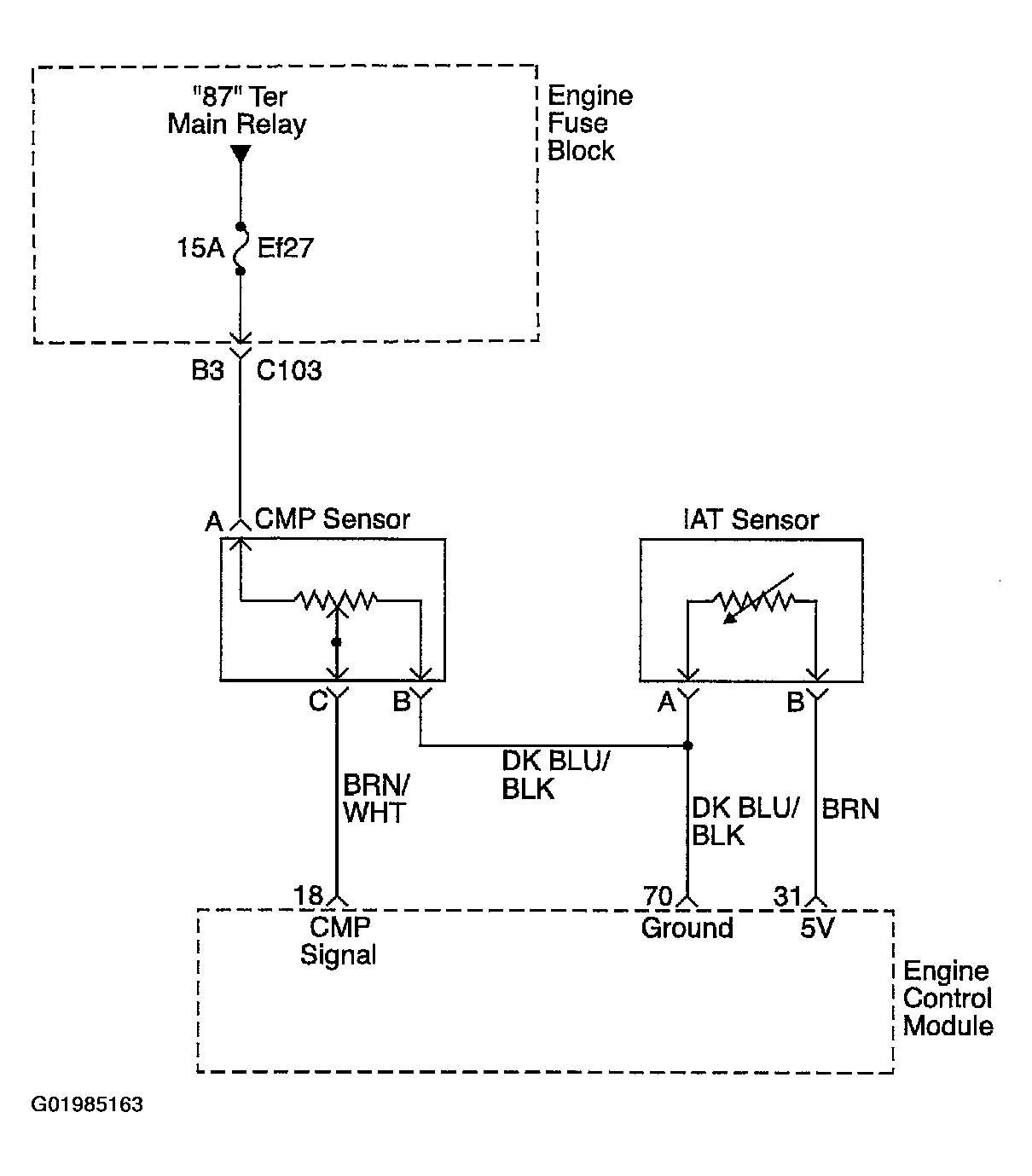

Fig 1: DTC P0112 Intake Air Temperature Sensor Low Input - System Wiring Diagram
Courtesy of SUZUKI OF AMERICA CORP.
Courtesy of SUZUKI OF AMERICA CORP.
