DTC P0261: Injector 1 Low Input
›
Notes
DTC P0261: Injector 1 Low Input: Notes

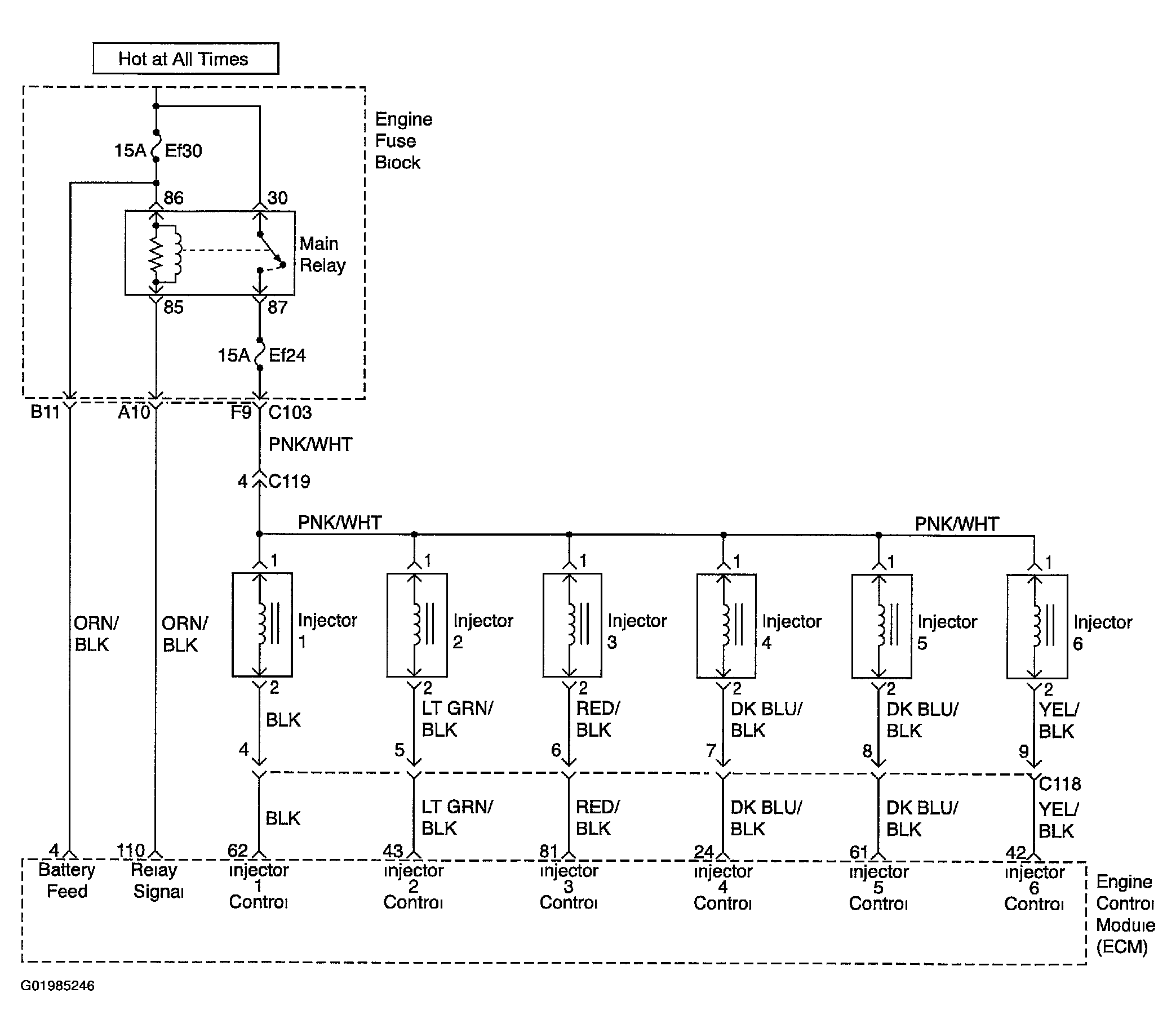

Fig 1: DTC P0261: Injector 1 Low Input - System Wiring Diagram
Courtesy of SUZUKI OF AMERICA CORP.
Courtesy of SUZUKI OF AMERICA CORP.
