DTC P0264: Injector 2 Low Input
›
Notes
DTC P0264: Injector 2 Low Input: Notes

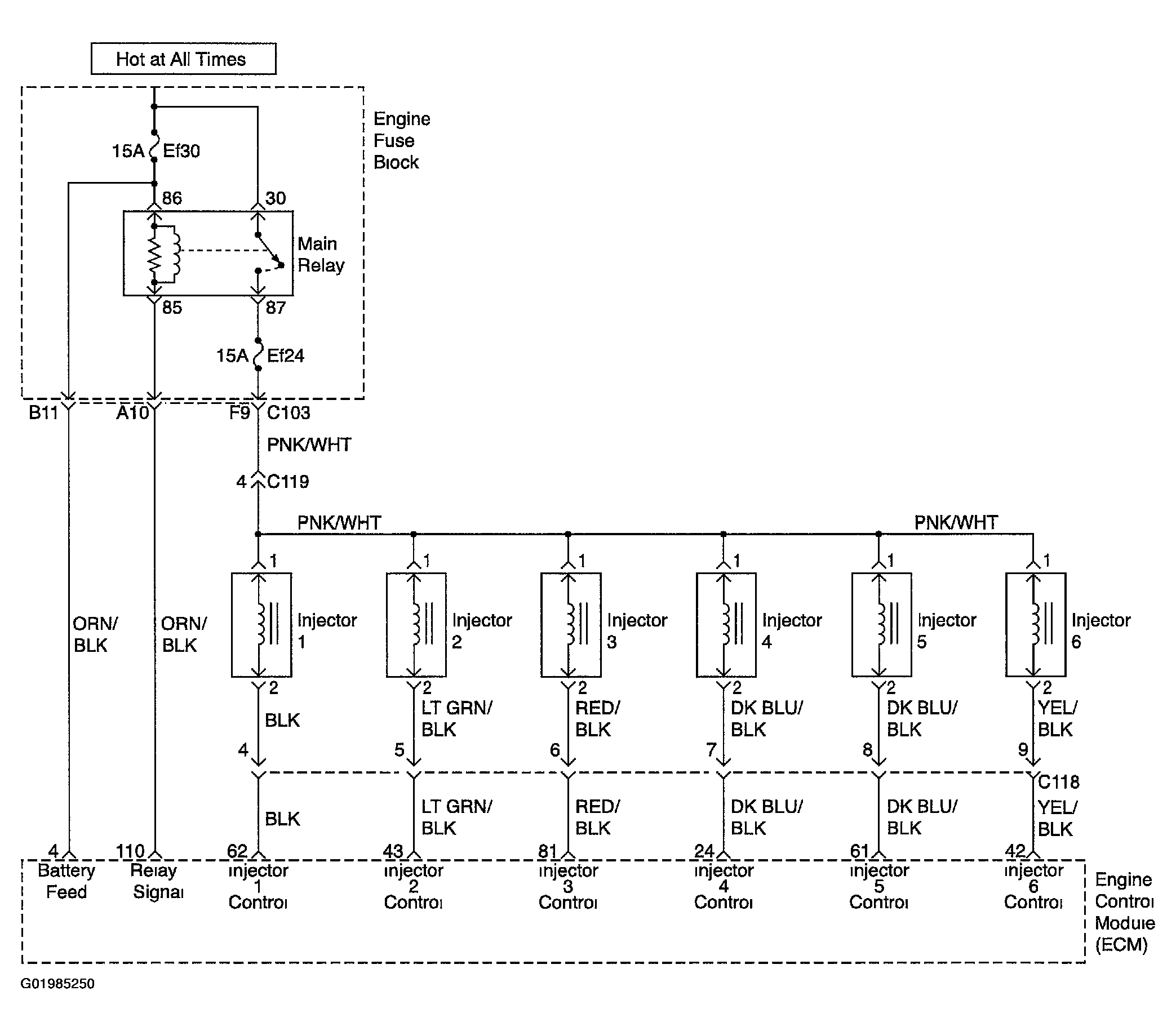

Fig 1: DTC P0264: Injector 2 Low Input - System Wiring Diagram
Courtesy of SUZUKI OF AMERICA CORP.
Courtesy of SUZUKI OF AMERICA CORP.
