DTC P0265: Injector 2 High Input
›
Notes
DTC P0265: Injector 2 High Input: Notes

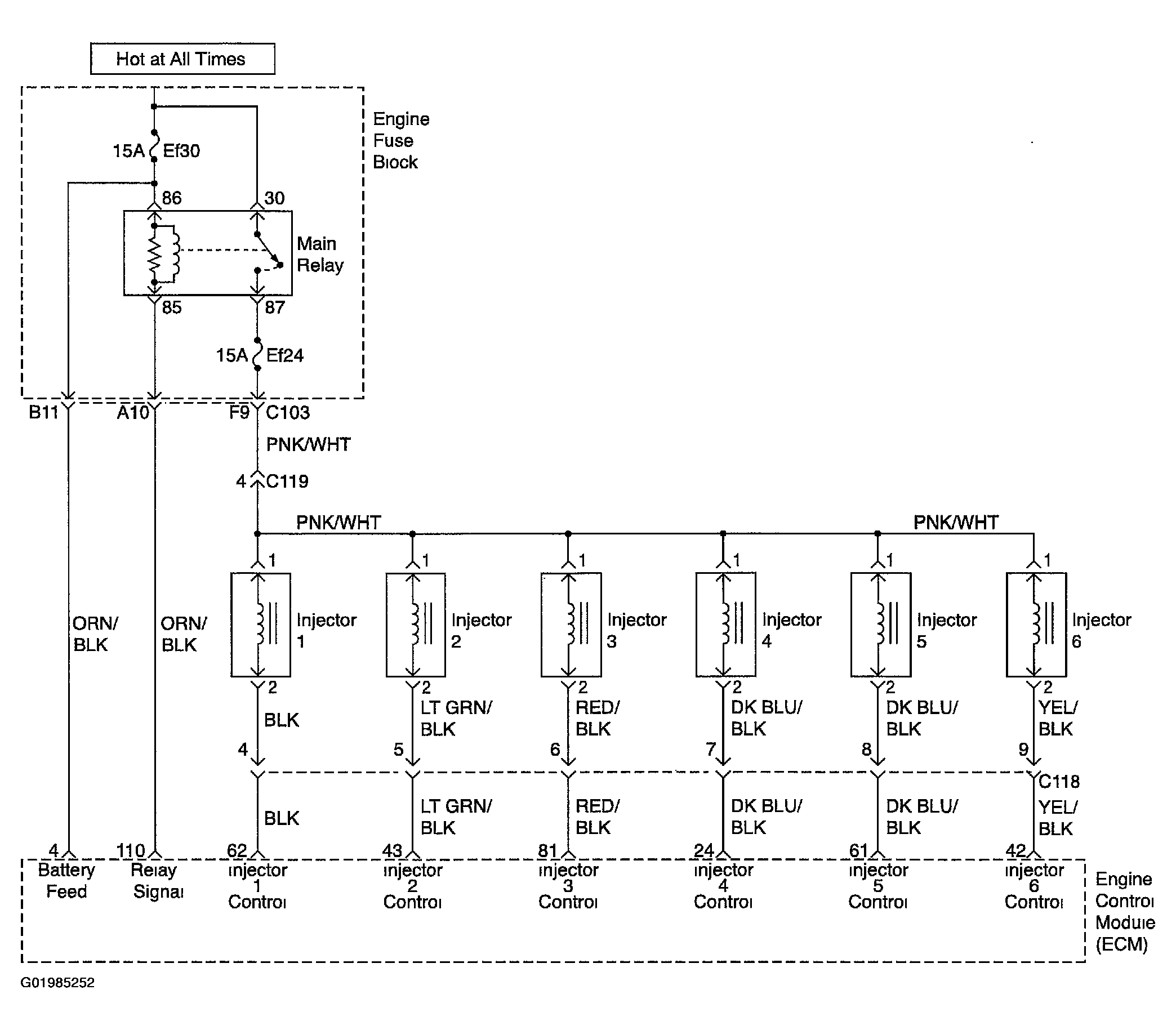

Fig 1: DTC P0265: Injector 2 High Input - System Wiring Diagram
Courtesy of SUZUKI OF AMERICA CORP.
Courtesy of SUZUKI OF AMERICA CORP.
