DTC P0447: EVAP Vent Control Circuit Open
›
Notes
DTC P0447: EVAP Vent Control Circuit Open: Notes

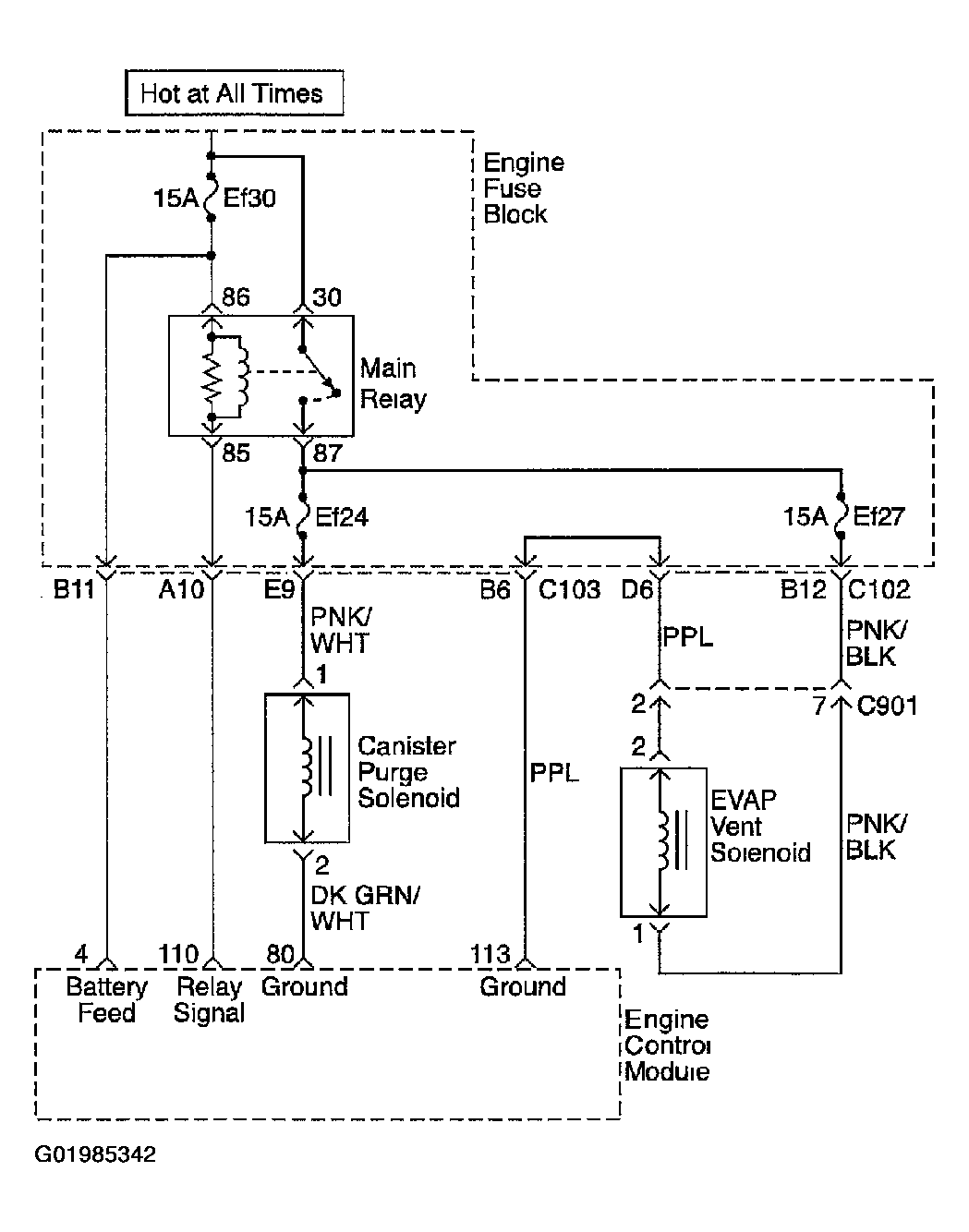

Fig 1: DTC P0447: EVAP Vent Control Circuit Open - System Wiring Diagram
Courtesy of SUZUKI OF AMERICA CORP.
Courtesy of SUZUKI OF AMERICA CORP.
