DTC P0448: EVAP Vent Control Circuit Shorted
›
Notes
DTC P0448: EVAP Vent Control Circuit Shorted: Notes

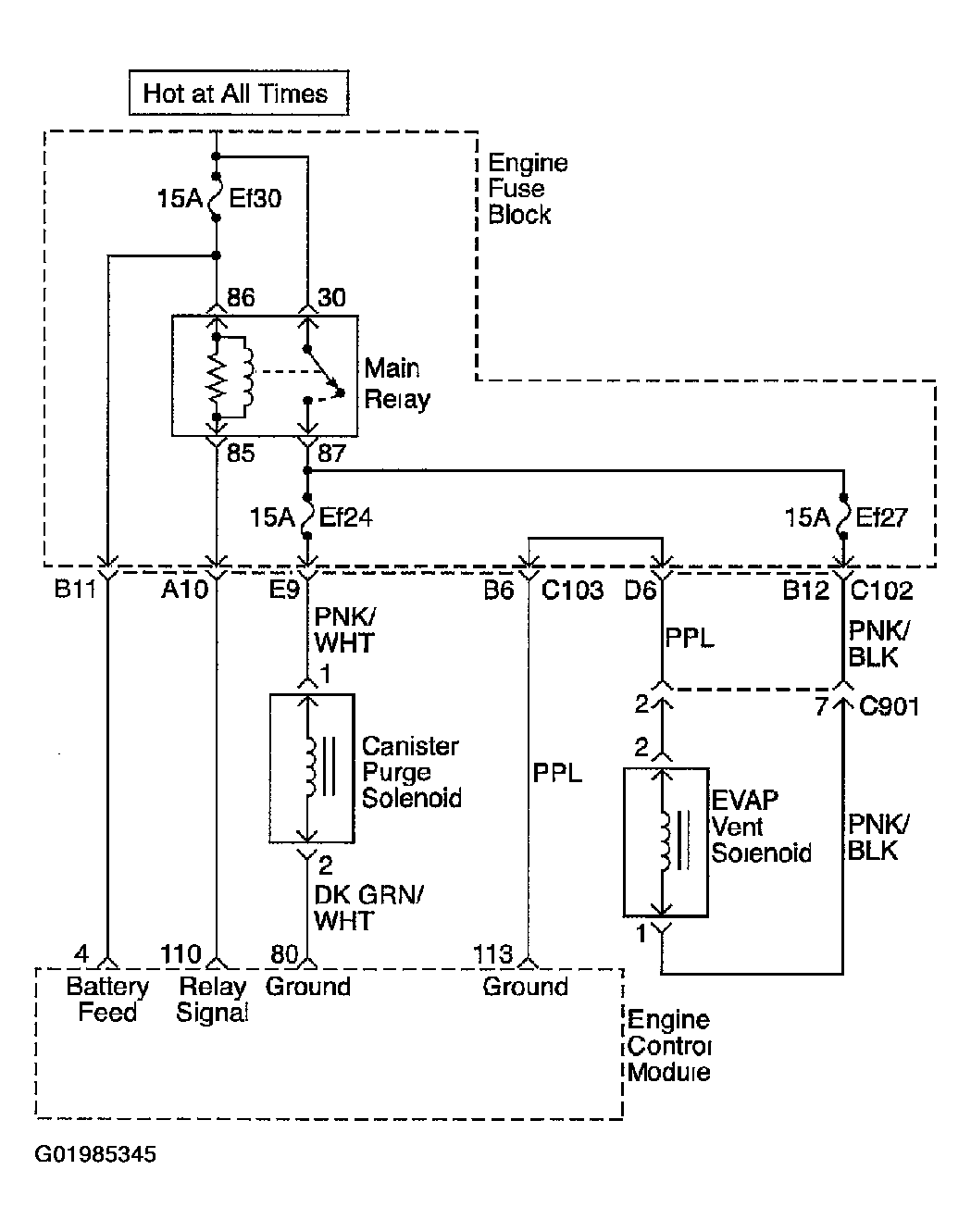

Fig 1: DTC P0448: EVAP Vent Control Circuit Shorted - System Wiring Diagram
Courtesy of SUZUKI OF AMERICA CORP.
Courtesy of SUZUKI OF AMERICA CORP.
