DTC P0452: Fuel Tank Pressure Sensor Low Input
›
Notes
DTC P0452: Fuel Tank Pressure Sensor Low Input: Notes

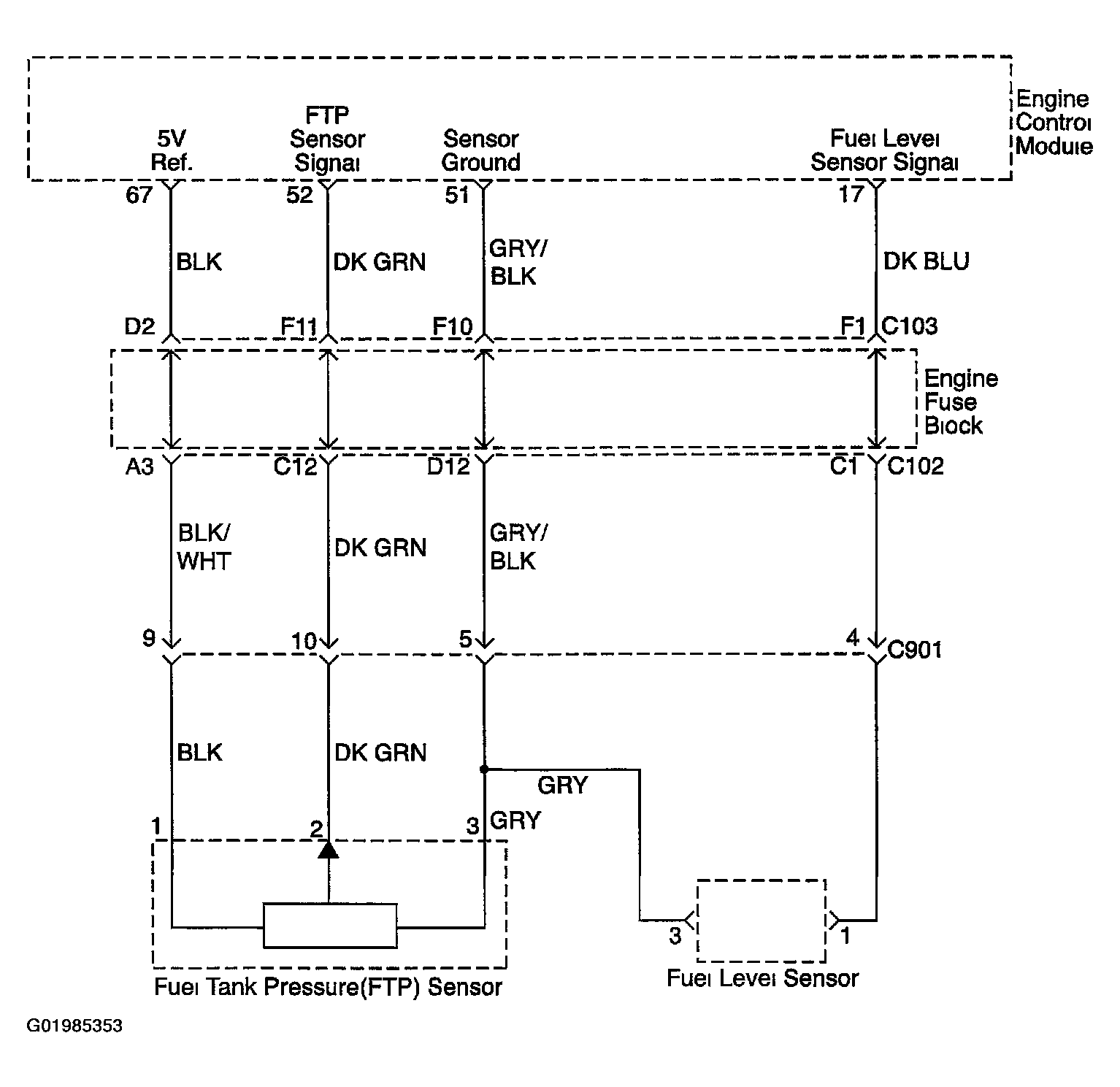

Fig 1: DTC P0452: Fuel Tank Pressure Sensor Low Input - System Wiring Diagram
Courtesy of SUZUKI OF AMERICA CORP.
Courtesy of SUZUKI OF AMERICA CORP.
