DTC P0462: Fuel Level Sensor Low Input
›
Notes
DTC P0462: Fuel Level Sensor Low Input: Notes

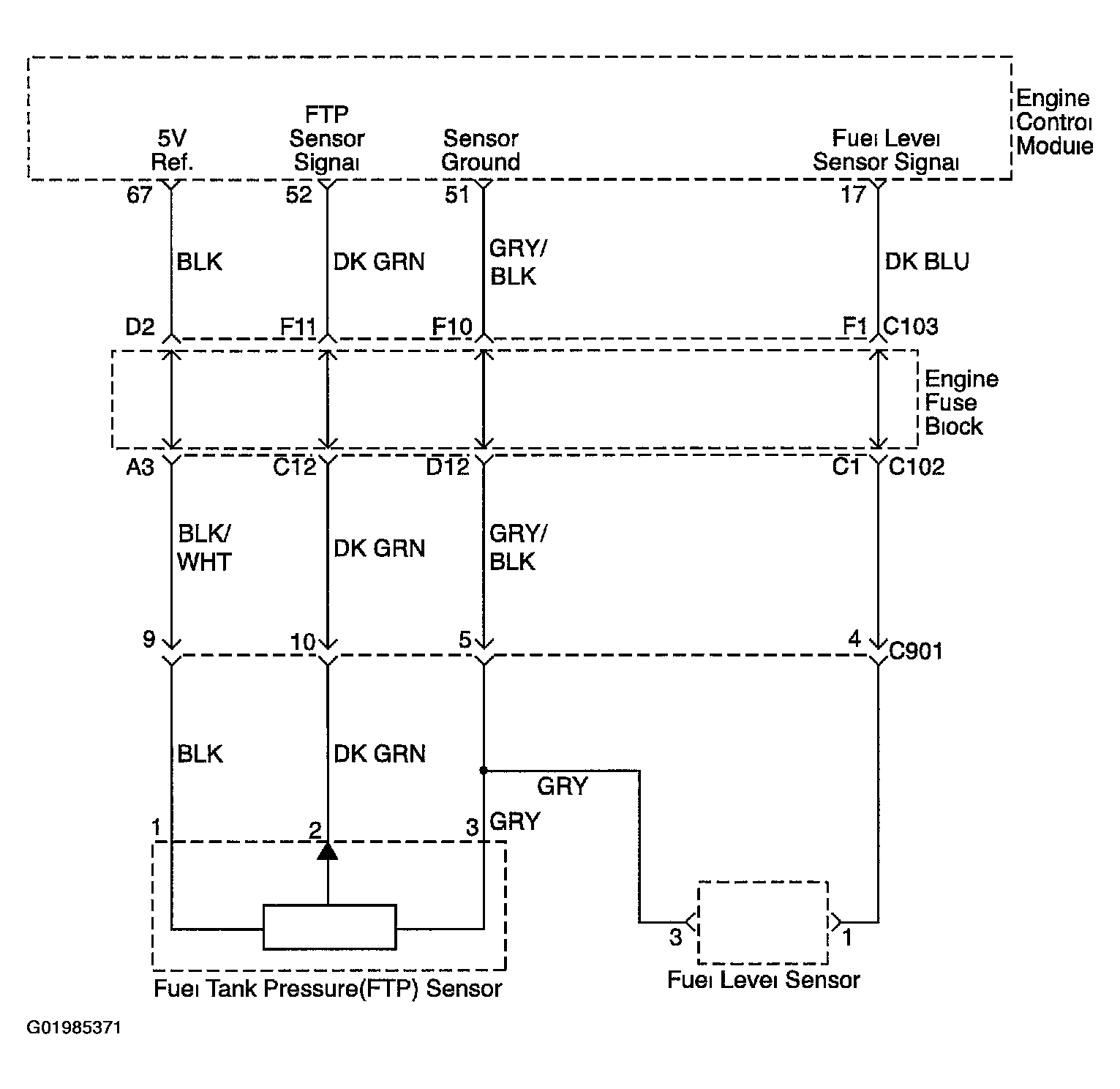

Fig 1: DTC P0462: Fuel Level Sensor Low Input - System Wiring Diagram
Courtesy of SUZUKI OF AMERICA CORP.
