DTC P0463: Fuel Level Sensor High Input
›
Notes
DTC P0463: Fuel Level Sensor High Input: Notes

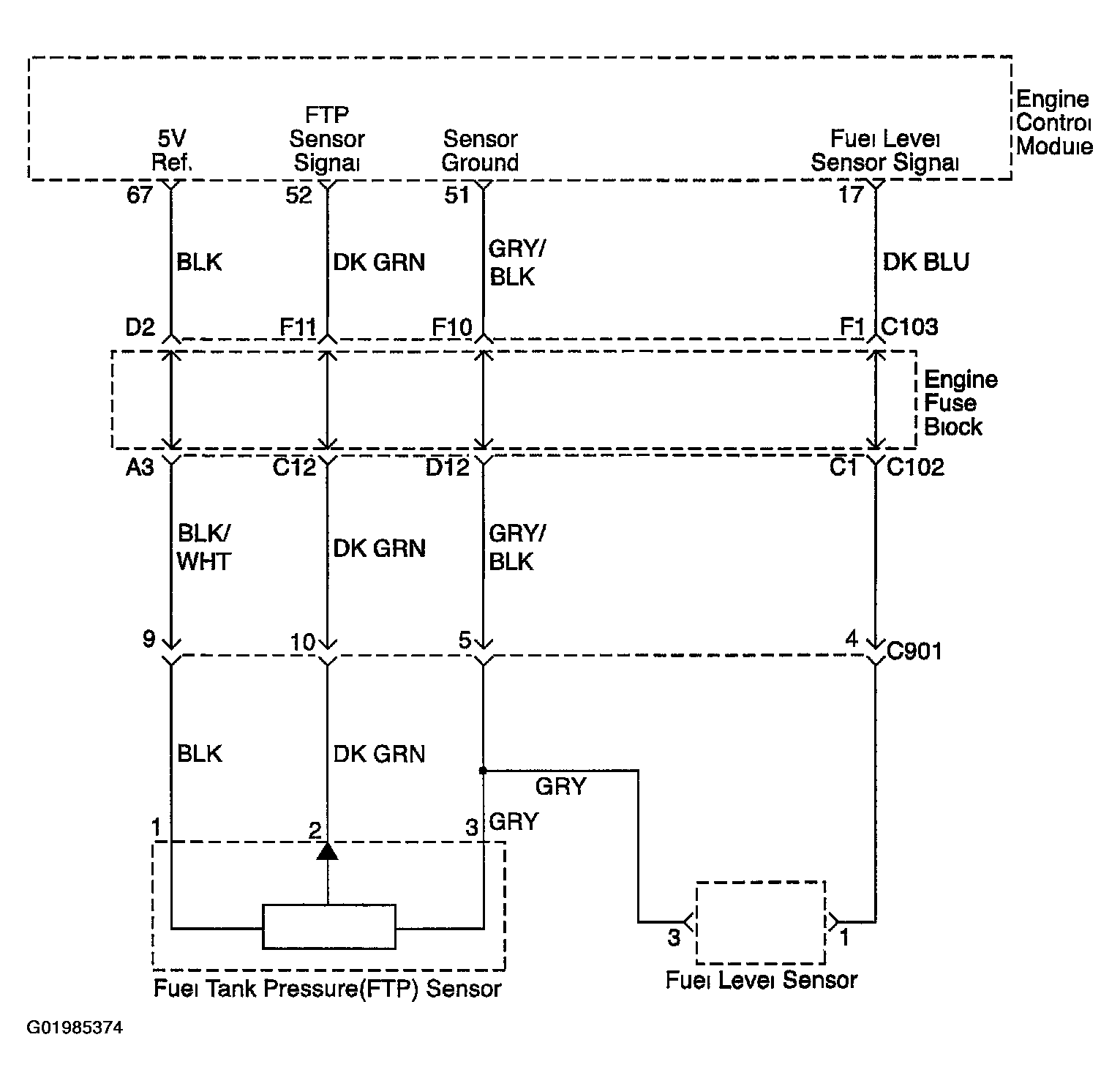

Fig 1: DTC P0463: Fuel Level Sensor High Input - System Wiring Diagram
Courtesy of SUZUKI OF AMERICA CORP.
Courtesy of SUZUKI OF AMERICA CORP.
