DTC P0533: A/C Pressure Sensor Circuit High Input
›
Notes
DTC P0533: A/C Pressure Sensor Circuit High Input: Notes

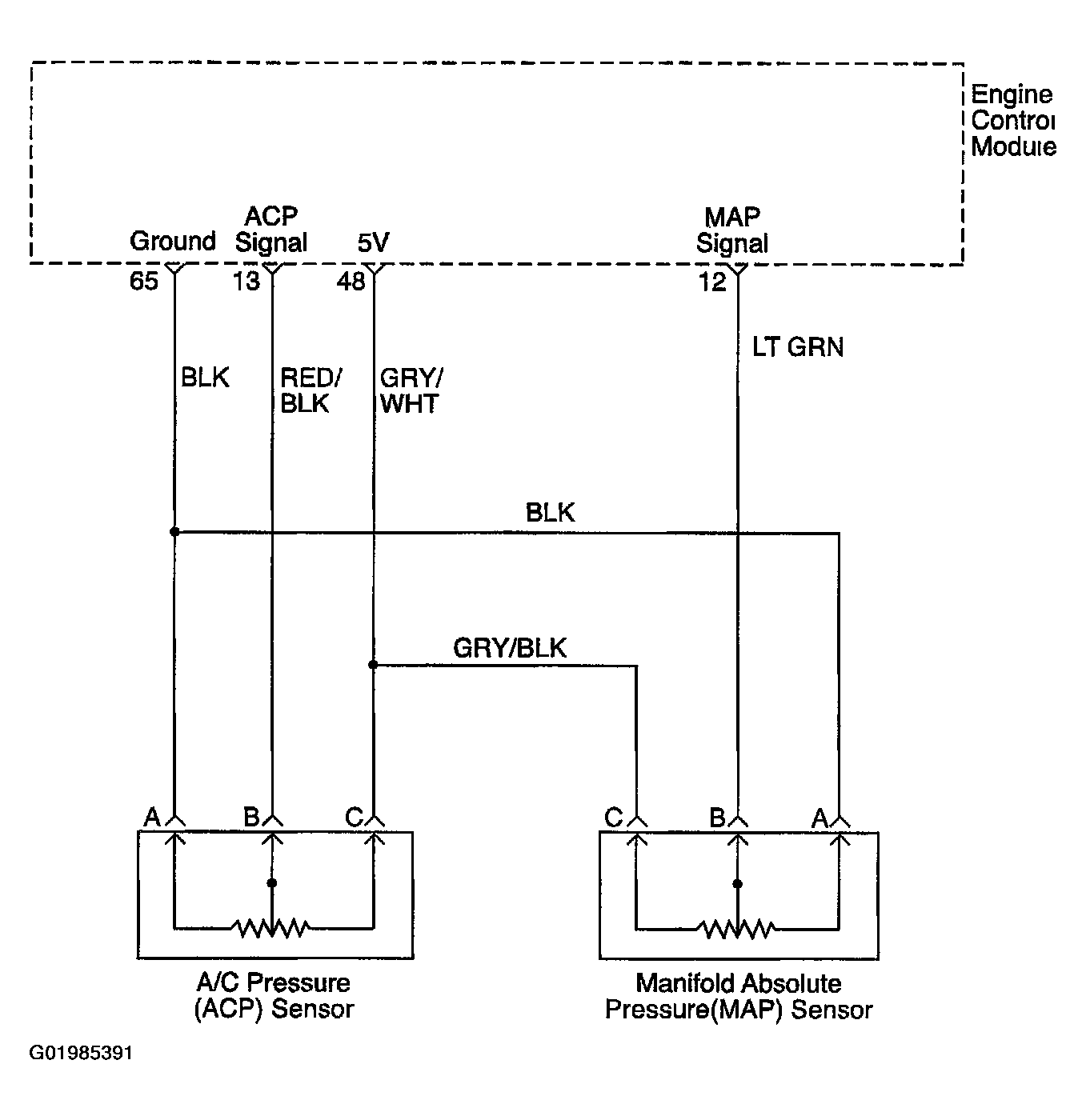

Fig 1: DTC P0533: A/C Pressure Sensor Circuit High Input - System Wiring Diagram
Courtesy of SUZUKI OF AMERICA CORP.
