Data Link Connector Diagnosis: Notes

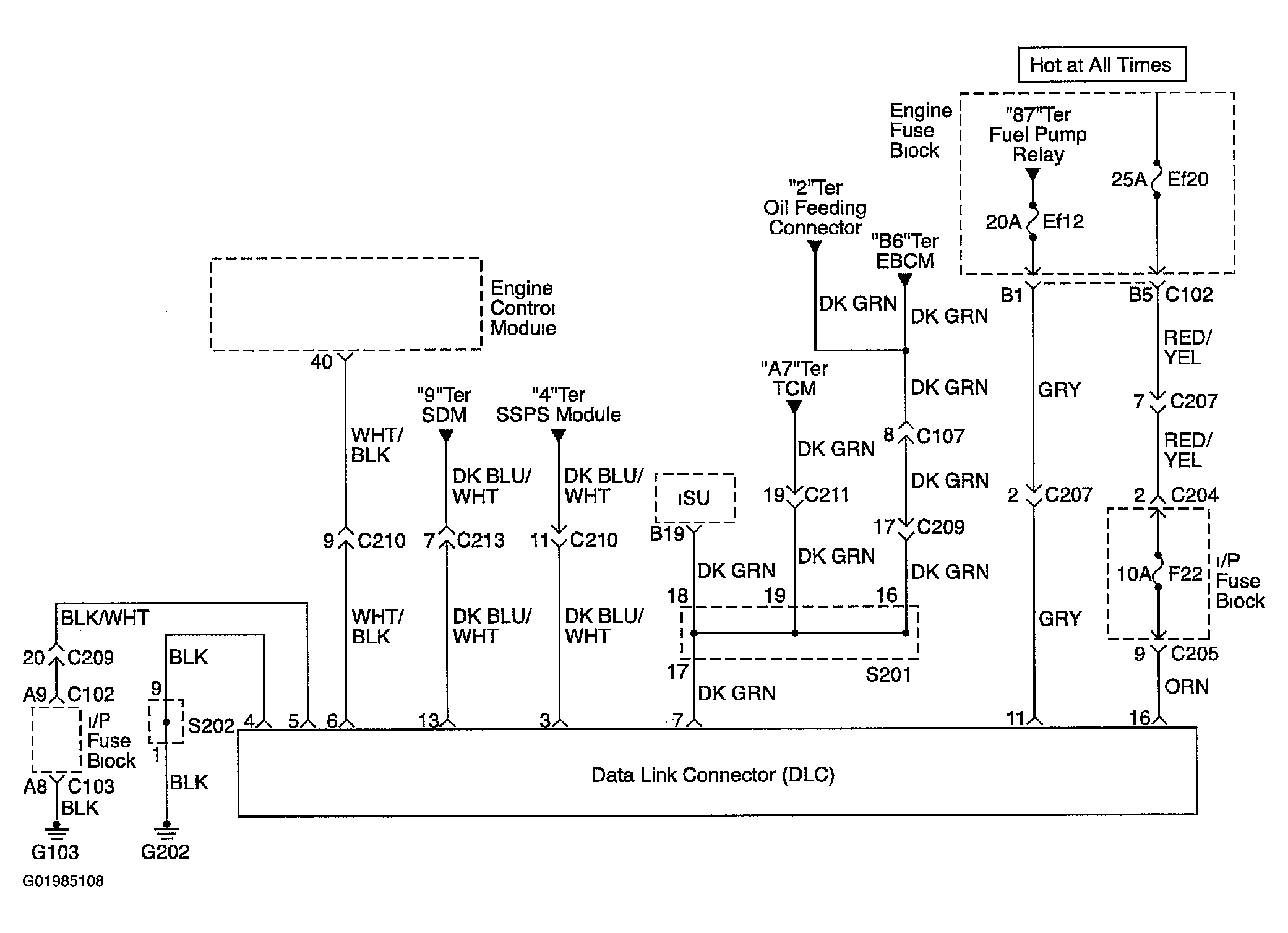

Fig 1: Data Link Connector Diagnosis - System Wiring Diagram
Courtesy of SUZUKI OF AMERICA CORP.
Courtesy of SUZUKI OF AMERICA CORP.
