Idle Air Control System Check: Notes

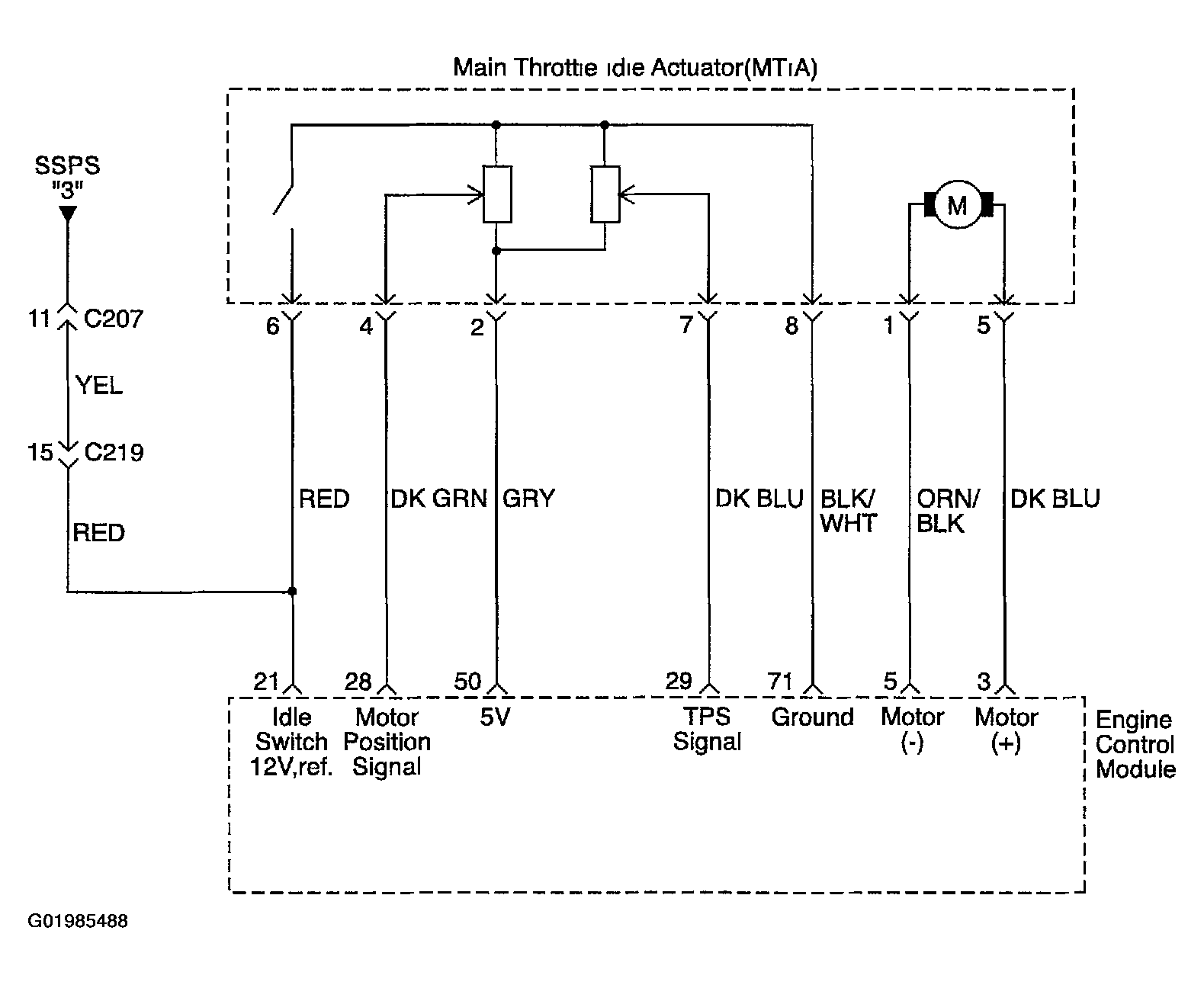

Fig 1: Idle Air Control System Check - System Wiring Diagram
Courtesy of SUZUKI OF AMERICA CORP.
