Schematic and Routing Diagram
›
Connector End View Diagram
Connector End View Diagram

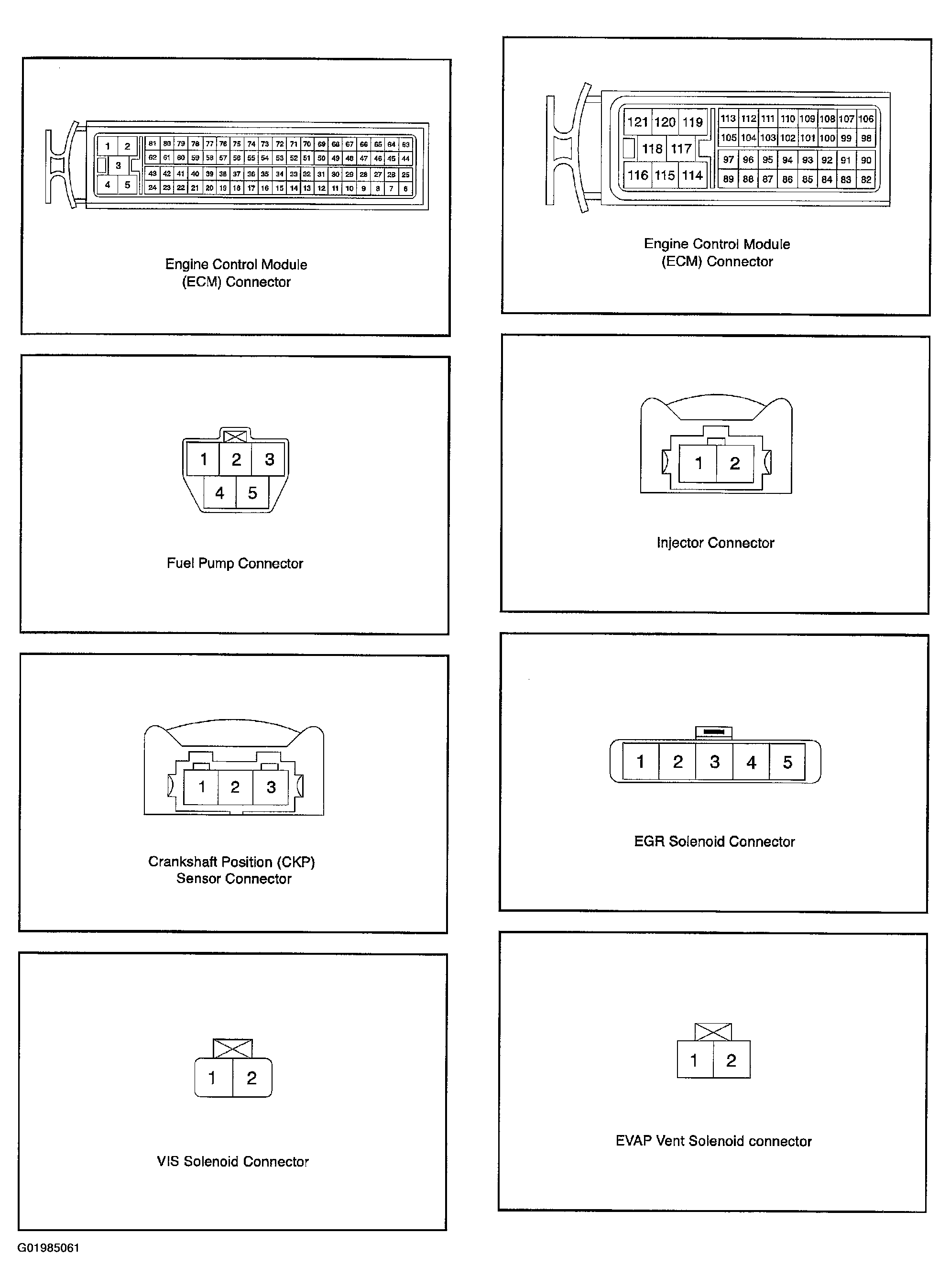

Fig 1: Connector End View Diagram (1 Of 2)
Courtesy of SUZUKI OF AMERICA CORP.

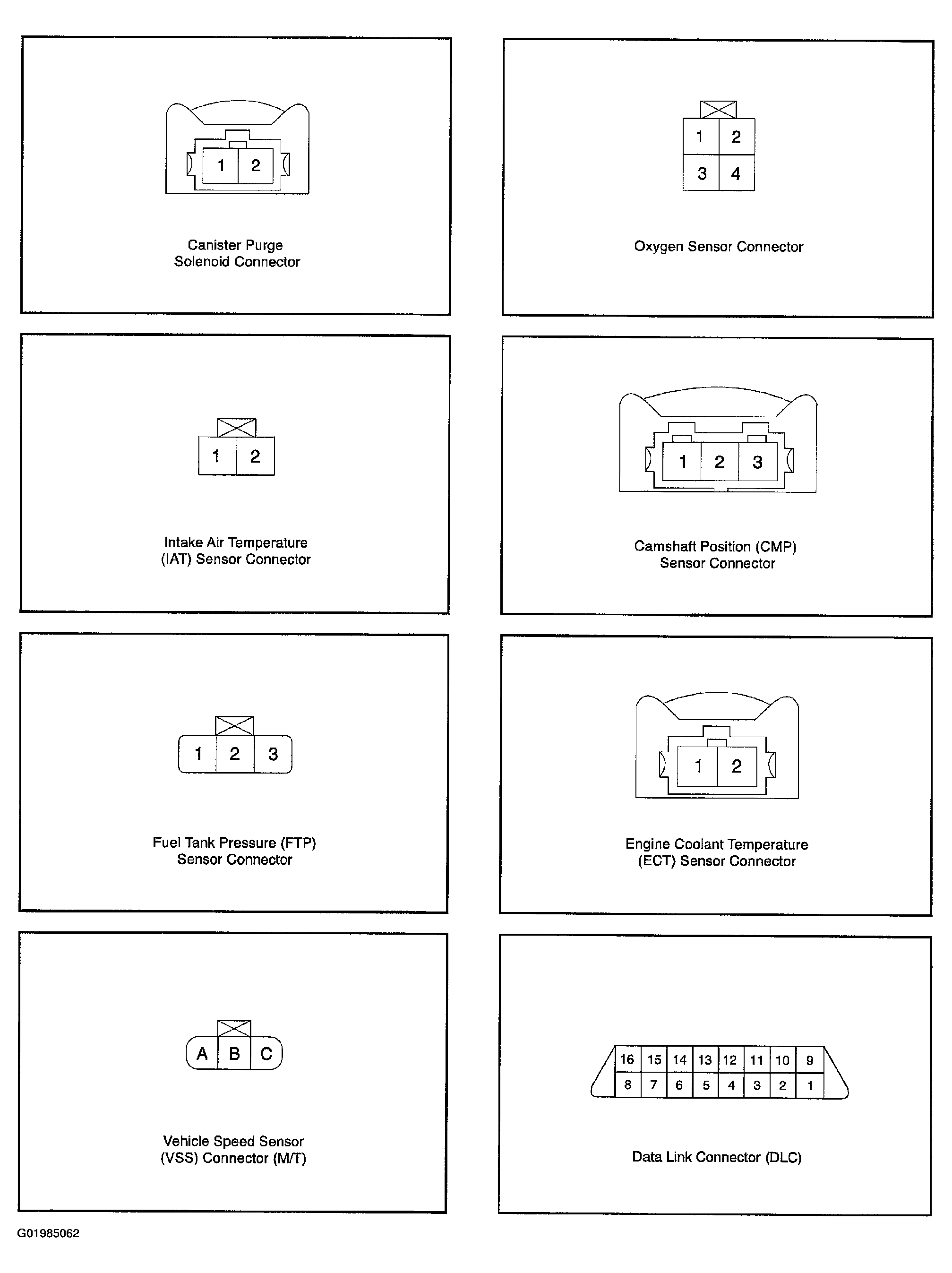

Fig 2: Connector End View Diagram (2 Of 2)
Courtesy of SUZUKI OF AMERICA CORP.
Courtesy of SUZUKI OF AMERICA CORP.
Courtesy of SUZUKI OF AMERICA CORP.
