Ignition Coil Installation

1. Installation should follow the removal procedure in the reverse order.
2. Install the ignition coils.

Tighten

1. Tighten the ignition coil retaining bolts to 6~8 N.m (53~71 lb-in).

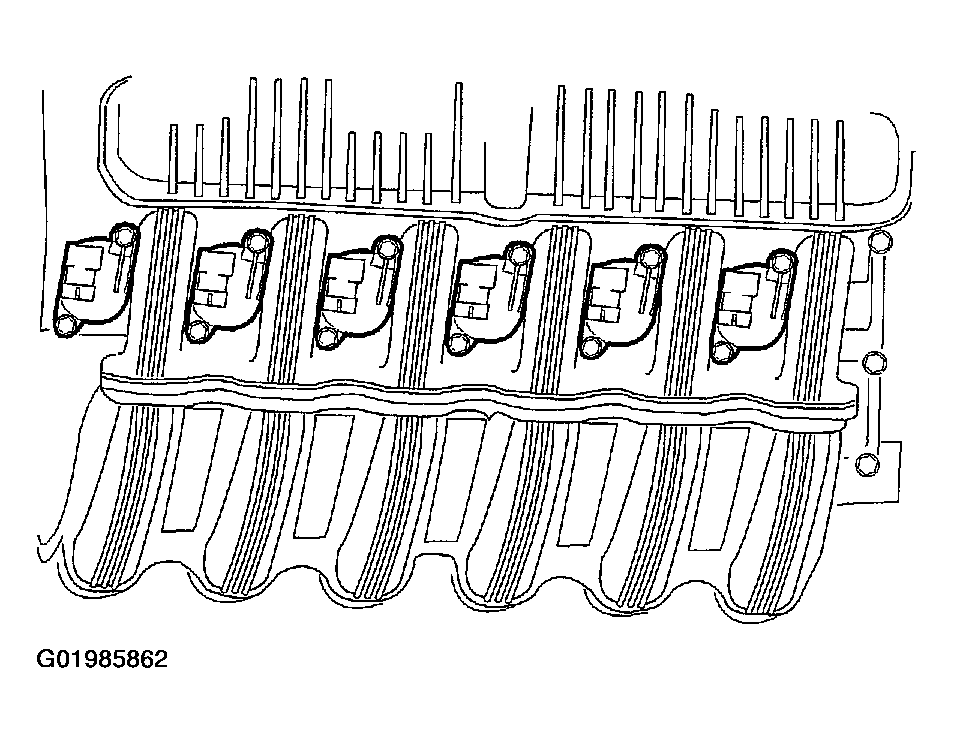

Fig 1: Installing Ignition Coils

Courtesy of SUZUKI OF AMERICA CORP.
