EVAP Control System Diagnosis: Notes

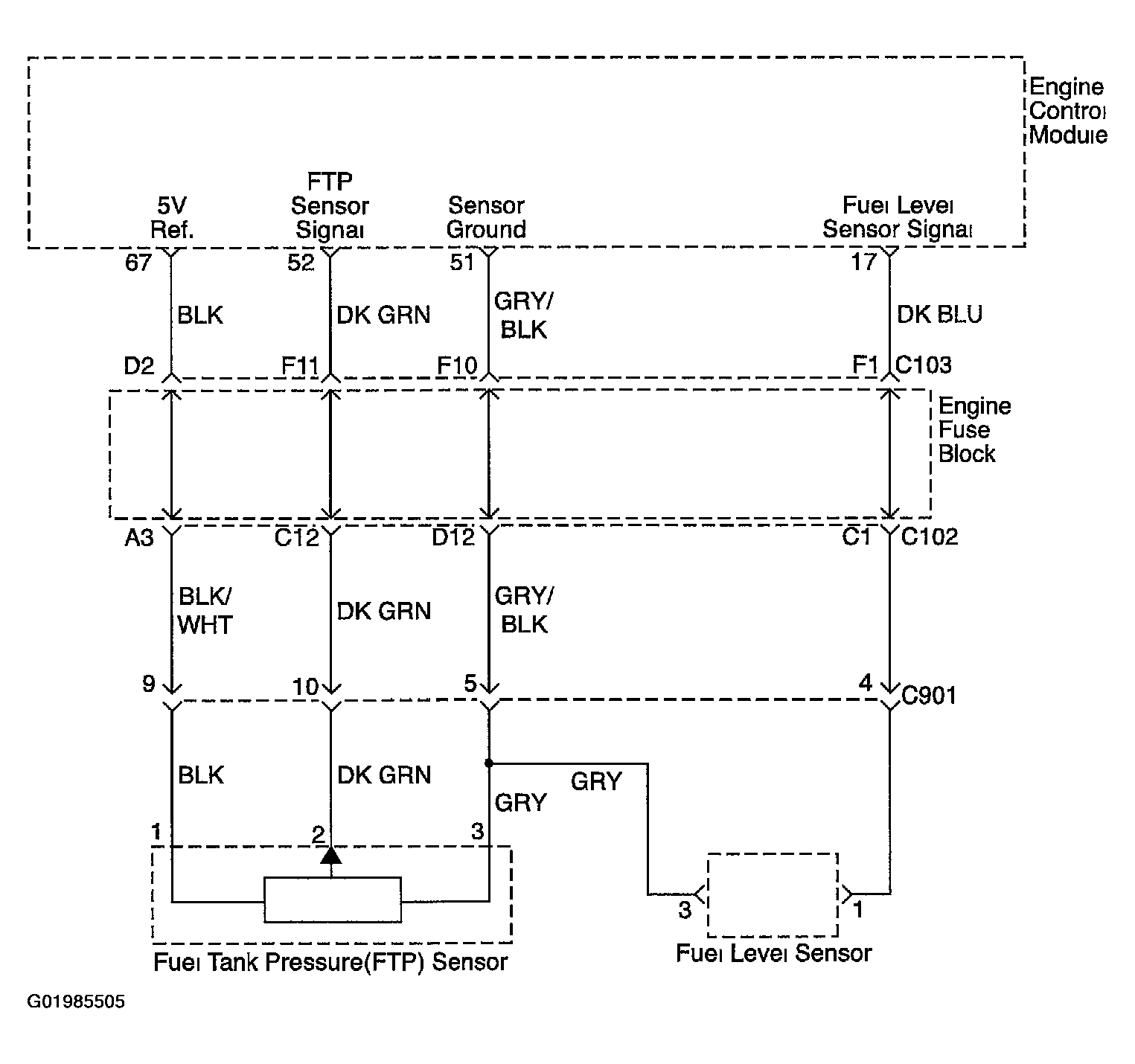

Fig 1: EVAP Control System Diagnosis - System Wiring Diagram
Courtesy of SUZUKI OF AMERICA CORP.
Courtesy of SUZUKI OF AMERICA CORP.
