Intake EGR Pipe Installation

Installation should follow the removal procedure in the reverse order.
Install the intake EGR pipe.
Tighten
1. Tighten the intake EGR pipe retaining bolts to 8-12 N.m (71-106 lb-in).

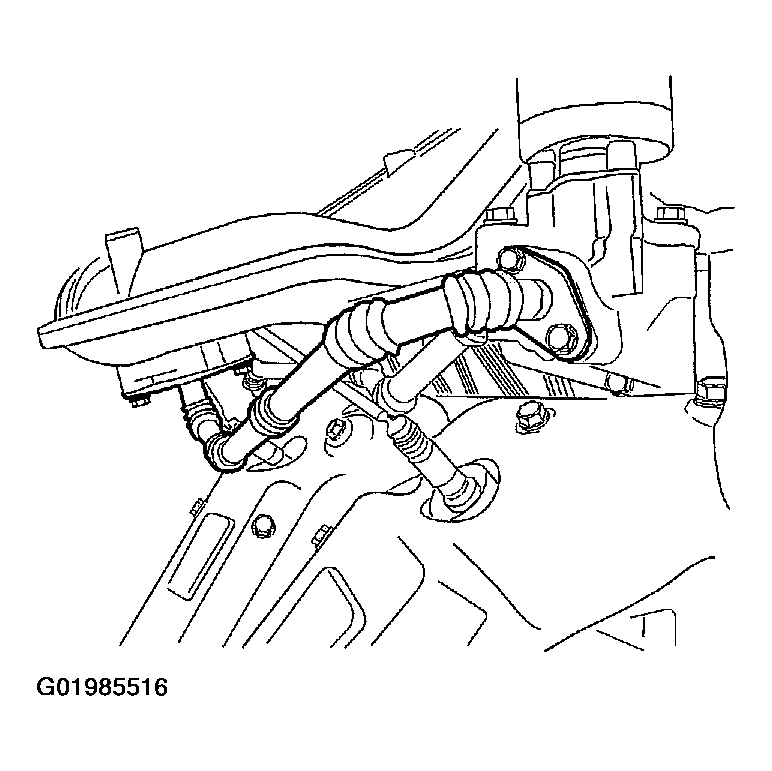

Fig 1: Installing Intake EGR Pipe

Courtesy of SUZUKI OF AMERICA CORP.
