Intake EGR Pipe Removal

  1. Remove the intake EGR pipe retaining bolts and the intake EGR pipe.
  2. Remove the intake EGR pipe gasket.

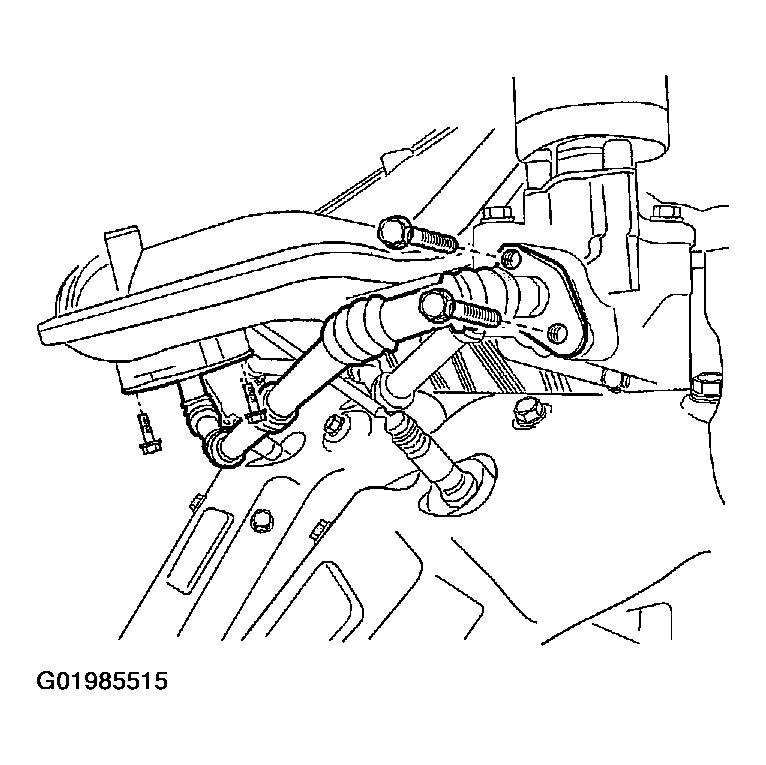

Fig 1: Removing Intake EGR Pipe Gasket
G01985515Courtesy of SUZUKI OF AMERICA CORP.
