Engine Control Module (ECM) Installation

  1. Installation should follow the removal procedure in the reverse order.
  2. Install the ECM.

    Tighten

    1. Tighten the ECM retaining nuts to 10-14 N.m (89-124 lb-in).

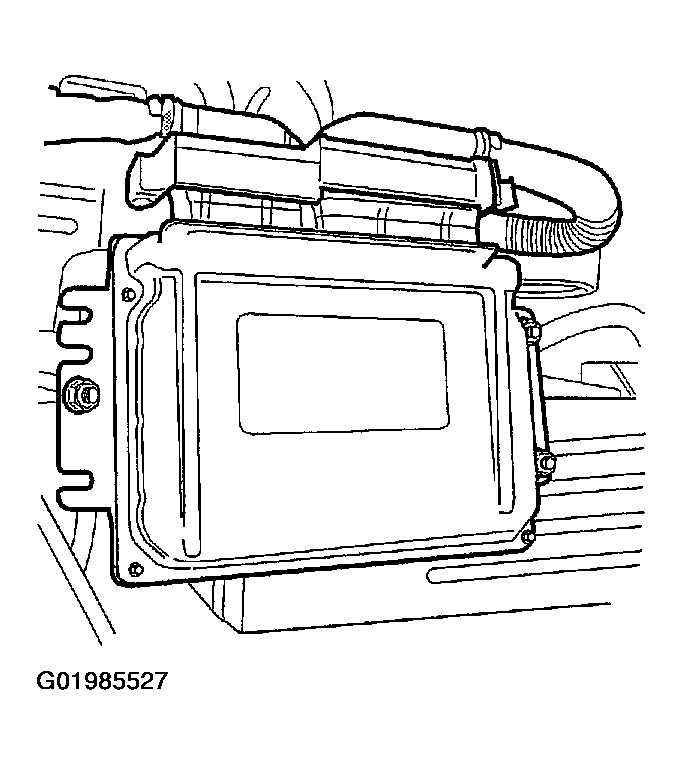

    3. Fig 1: Installing ECM
    G01985527Courtesy of SUZUKI OF AMERICA CORP.
  3. Tighten the ECM bracket nuts.

    Tighten

    • Tighten the ECM bracket nuts to 10-14 N.m (89-124 lb-in).

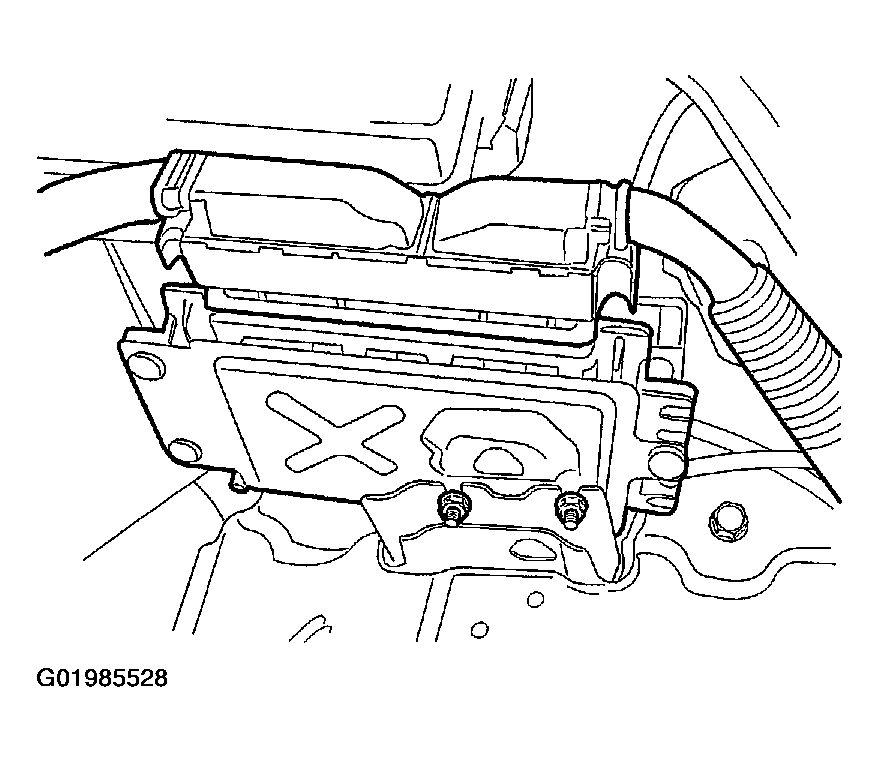

Fig 2: Tightening ECM Bracket Nuts
G01985528Courtesy of SUZUKI OF AMERICA CORP.
