Engine Coolant Temperature Sensor Removal

1. Relieve the pressure in the coolant reservoir by turning the coolant reservoir cap slightly counterclockwise.
2. Disconnect the negative battery cable.
Fig 1: Disconnecting Negative Battery Cable
Courtesy of SUZUKI OF AMERICA CORP.

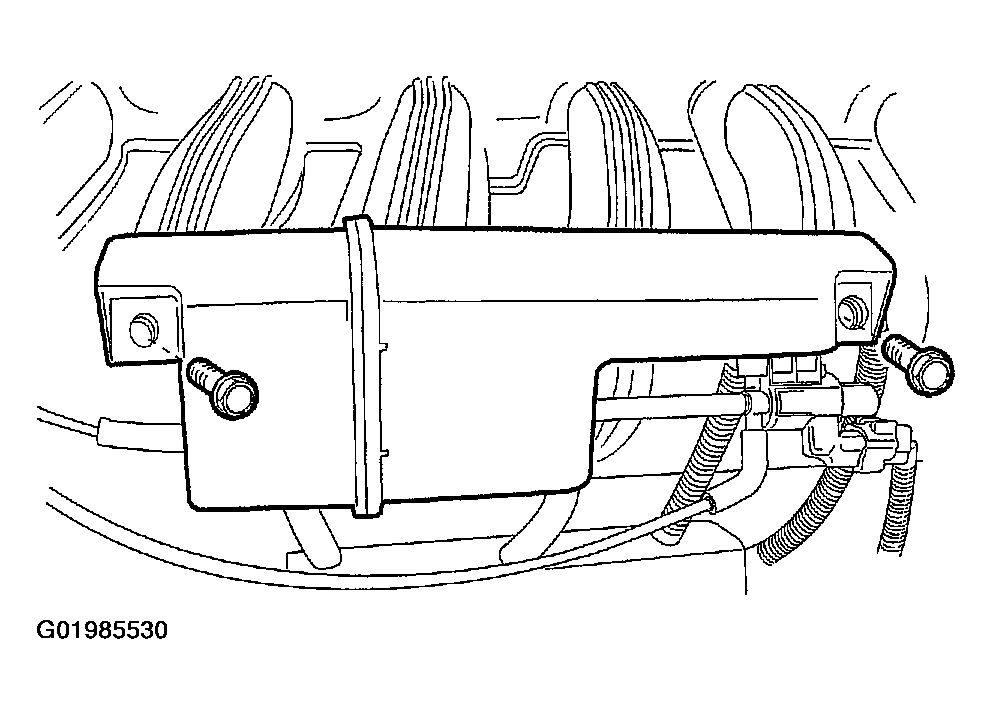

3. Remove the VIS vacuum tank. Refer to VIS Vacuum Tank Removal  .
Fig 2: Removing VIS Vacuum Tank
Courtesy of SUZUKI OF AMERICA CORP.

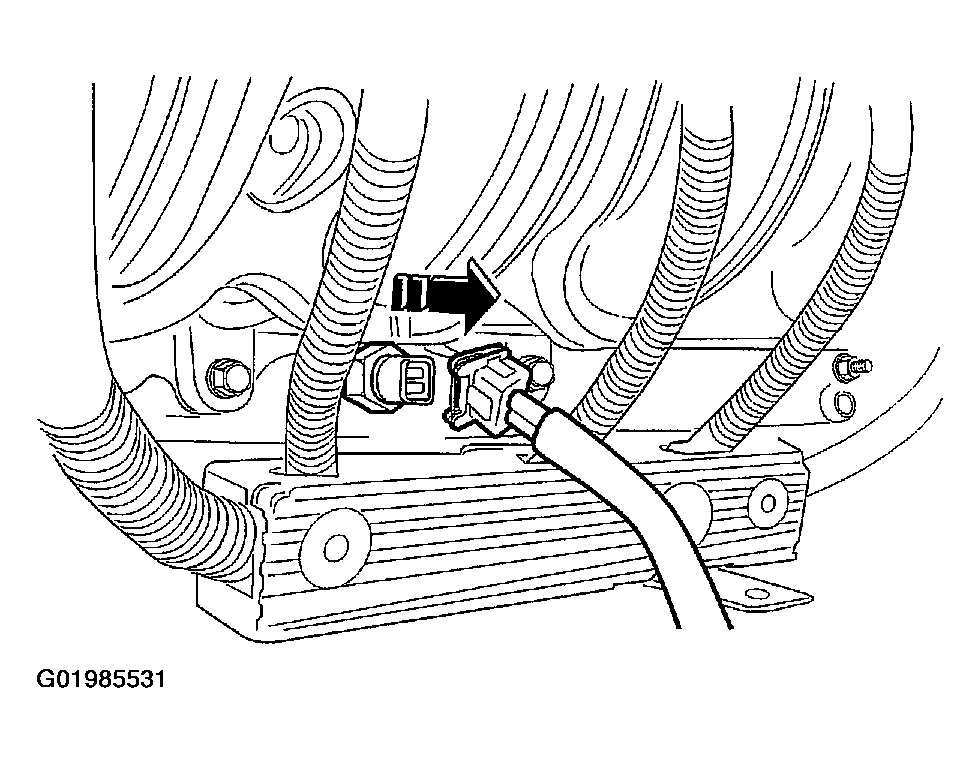

4. Disconnect the engine coolant temperature sensor (ECTS) connector.
5. Remove the ECTS from the cylinder head.

Fig 3: Removing ECTS From Cylinder Head

Courtesy of SUZUKI OF AMERICA CORP.
