Intake Air Temperature (IAT) Sensor Installation

Installation should follow the removal procedure in the reverse order.
Install the IAT sensor.
Tighten
1. Tighten the intake air temperature (IAT) sensor to 20-30 N.m (15-22 lb-ft).

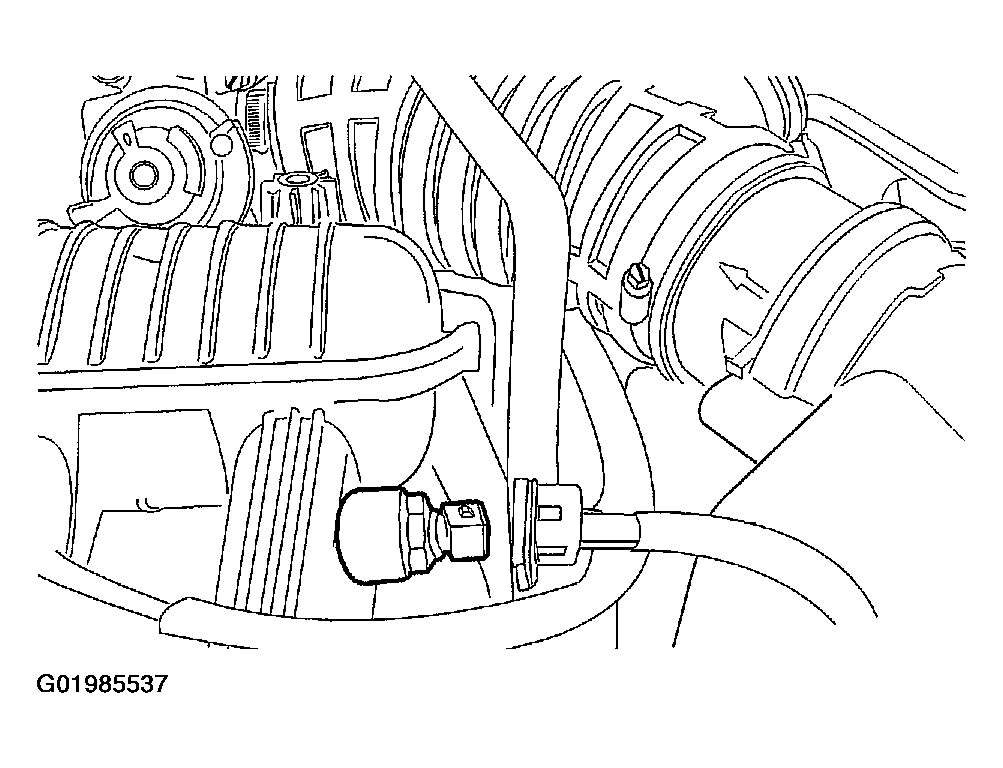

Fig 1: Installing IAT Sensor

Courtesy of SUZUKI OF AMERICA CORP.
