DTC P0601: Internal Control Module Memory Checksum Error
›
Notes
DTC P0601: Internal Control Module Memory Checksum Error: Notes

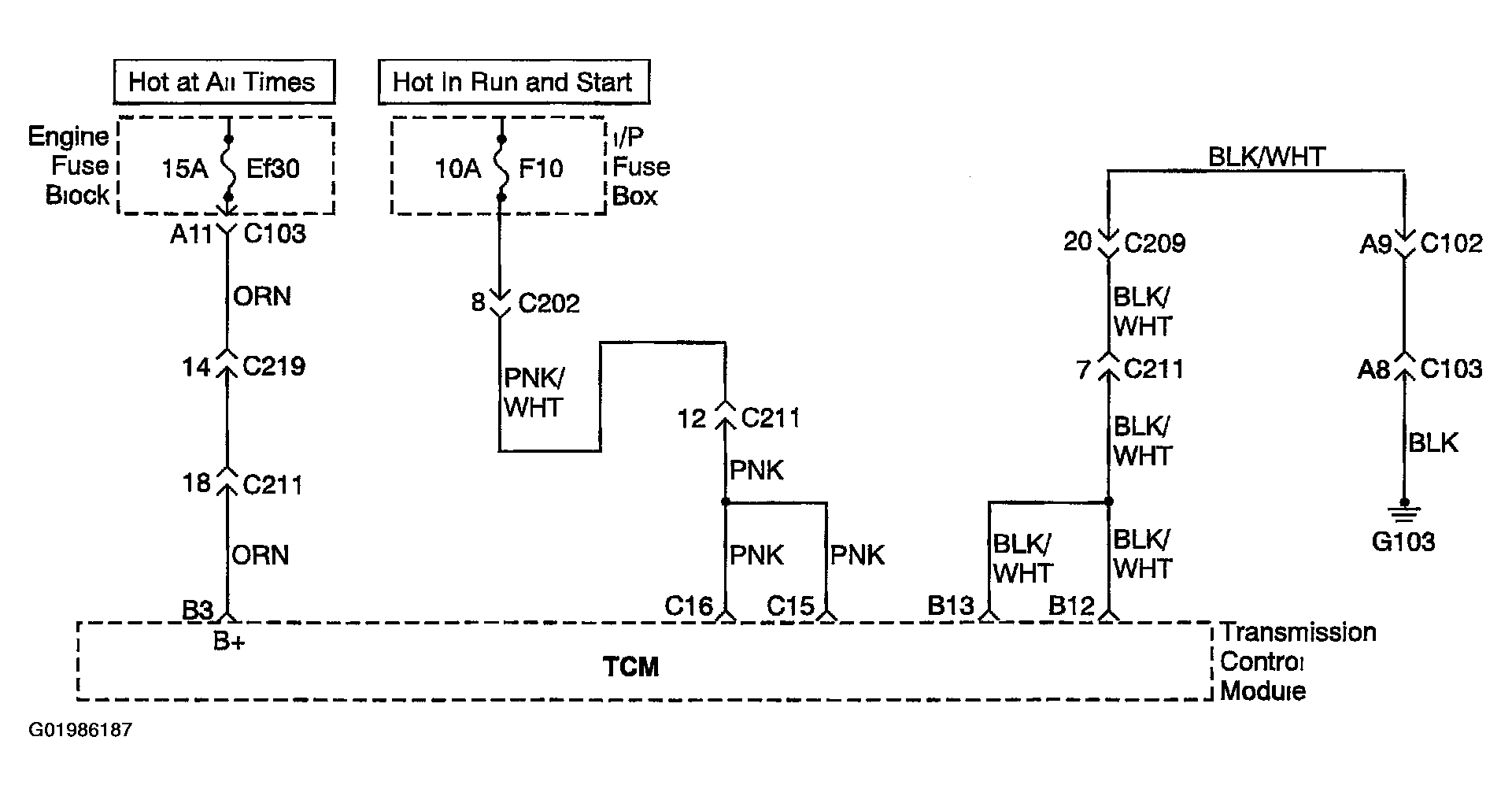

Fig 1: DTC P0601: Internal Control Module Memory Checksum Error - Diagnostic Wiring Diagram
Courtesy of SUZUKI OF AMERICA CORP.
Courtesy of SUZUKI OF AMERICA CORP.
