DTC P0606: Transaxle Control Module Processor Fault
›
Notes
DTC P0606: Transaxle Control Module Processor Fault: Notes

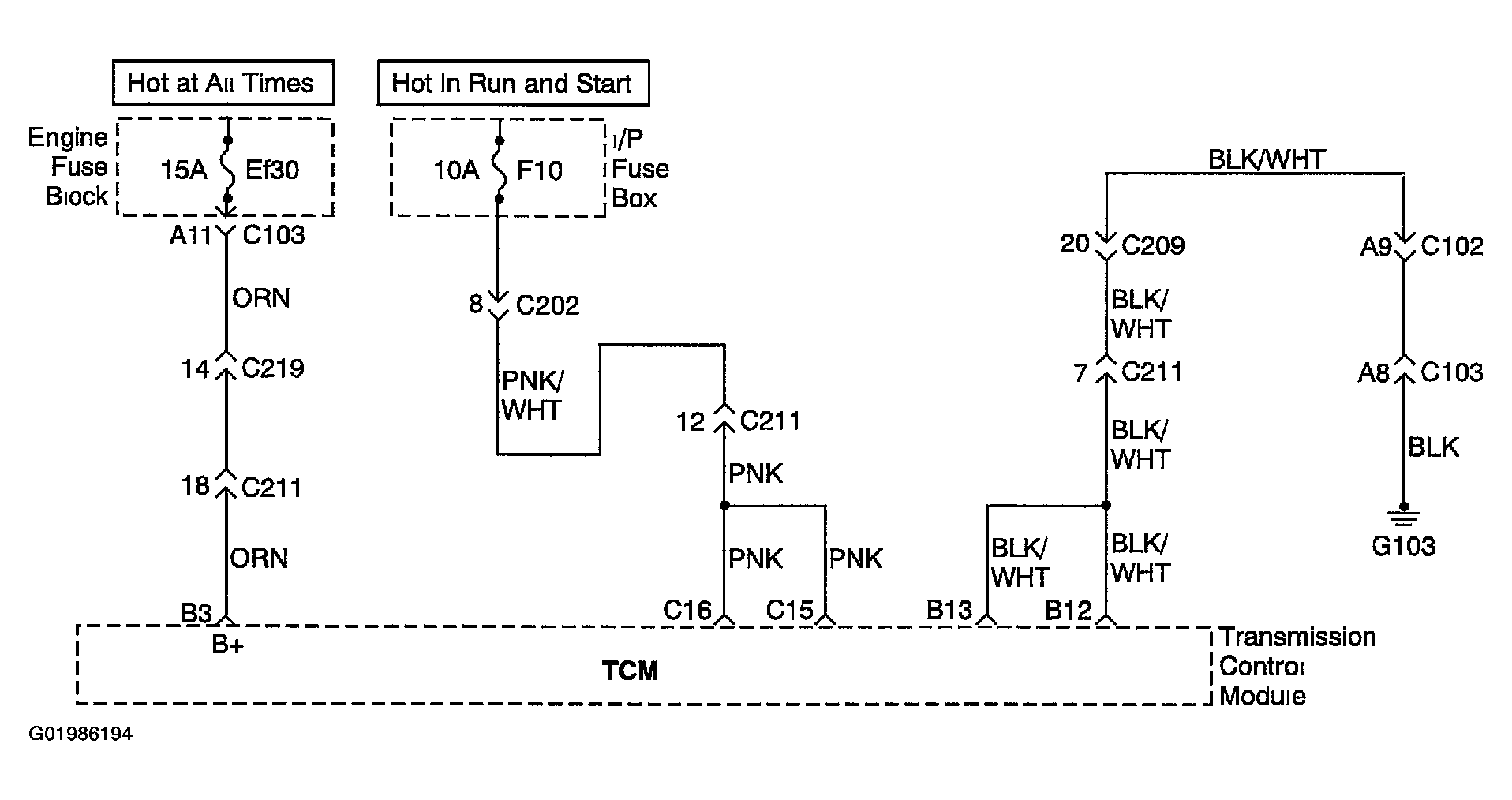

Fig 1: DTC P0606: Transaxle Control Module Processor Fault - Diagnostic Wiring Diagram
Courtesy of SUZUKI OF AMERICA CORP.
Courtesy of SUZUKI OF AMERICA CORP.
