Transaxle Control Module Diagram

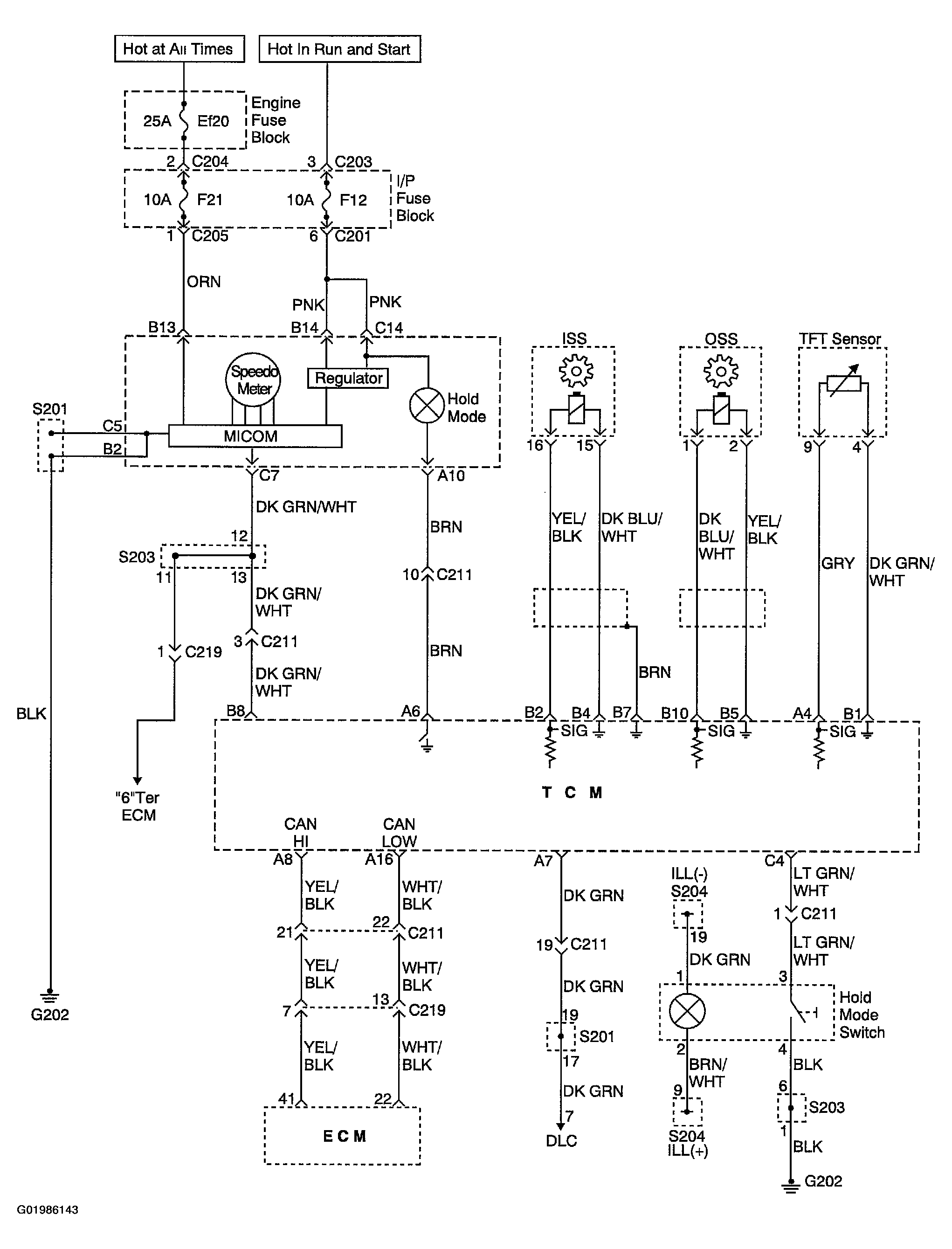

Fig 1: Identifying Transaxle Control Module Diagram (1 Of 2)

Courtesy of SUZUKI OF AMERICA CORP.

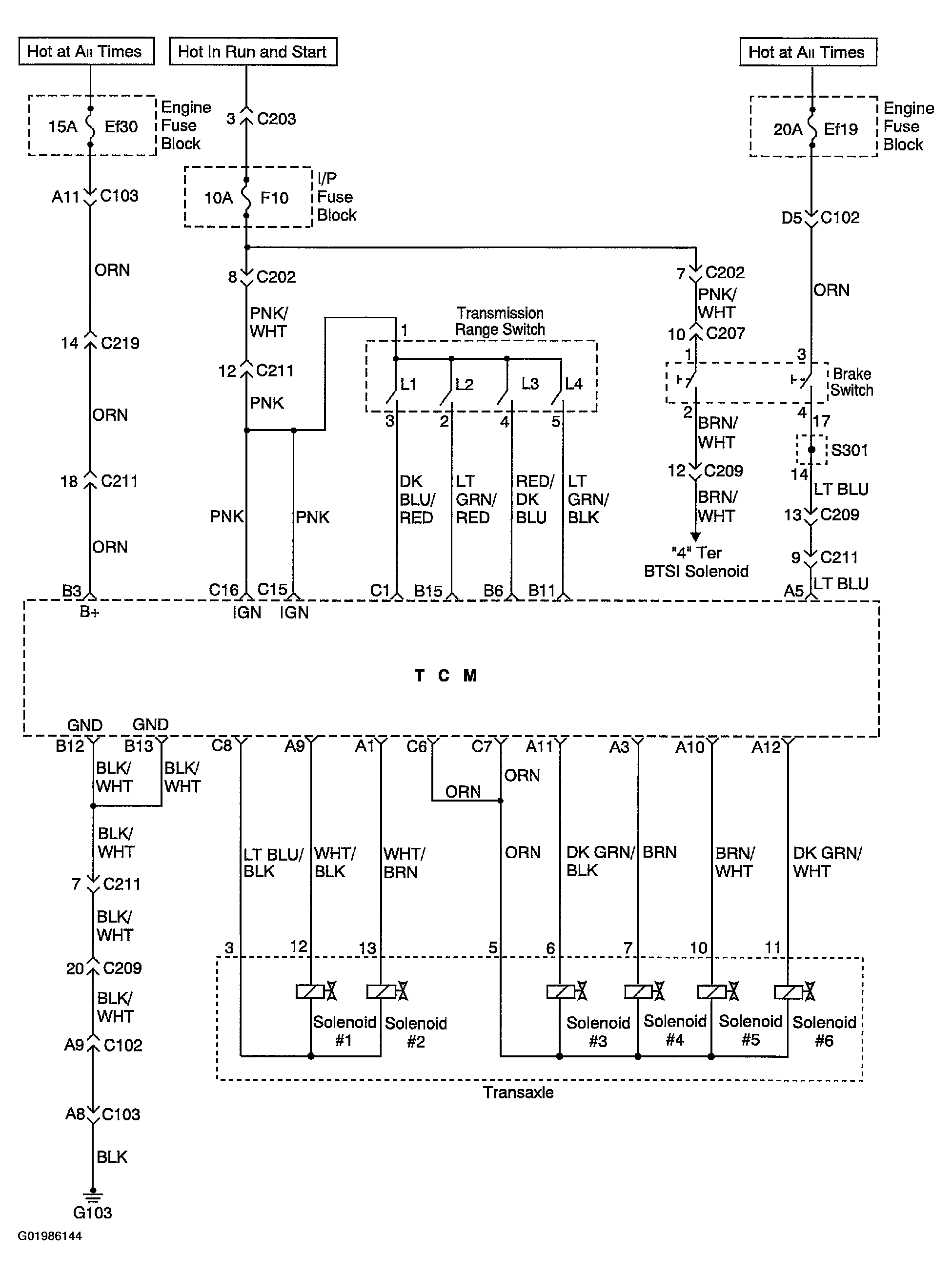

Fig 2: Identifying Transaxle Control Module Diagram (2 Of 2)

Courtesy of SUZUKI OF AMERICA CORP.
