Transaxle Control Module (TCM) Removal

1. Disconnect the negative battery cable.
2. Disconnect the wiring connectors.
3. Remove the transaxle control module (TCM) and nuts.

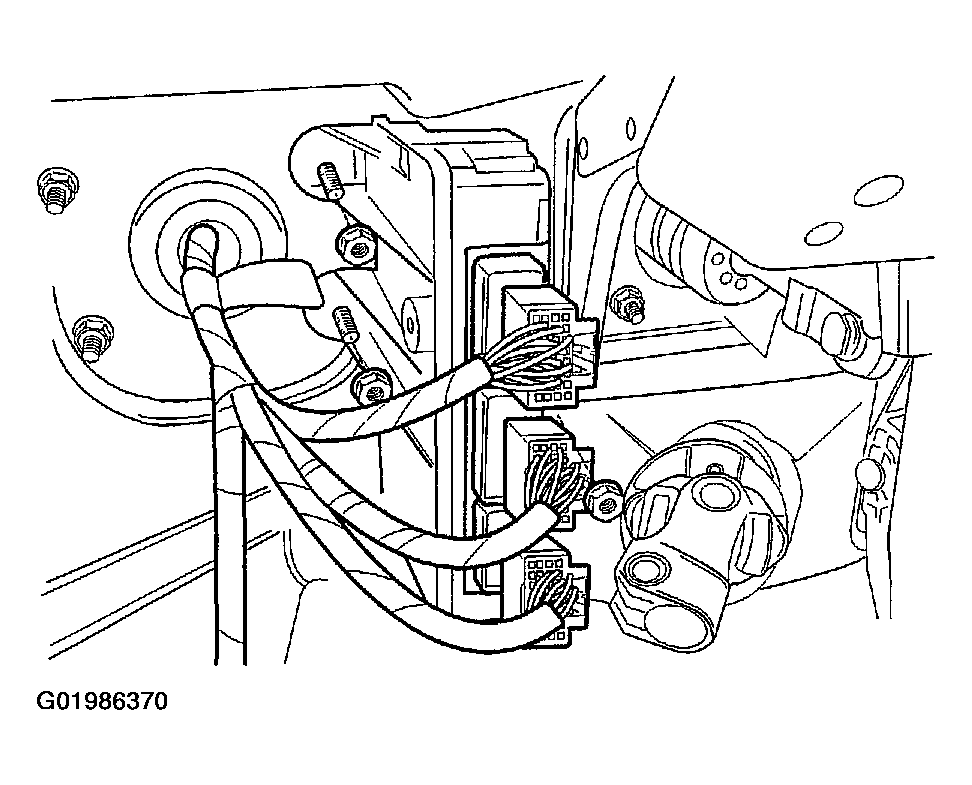

Fig 1: Removing TCM & Nuts

Courtesy of SUZUKI OF AMERICA CORP.
