Line Pressure
Line Pressure

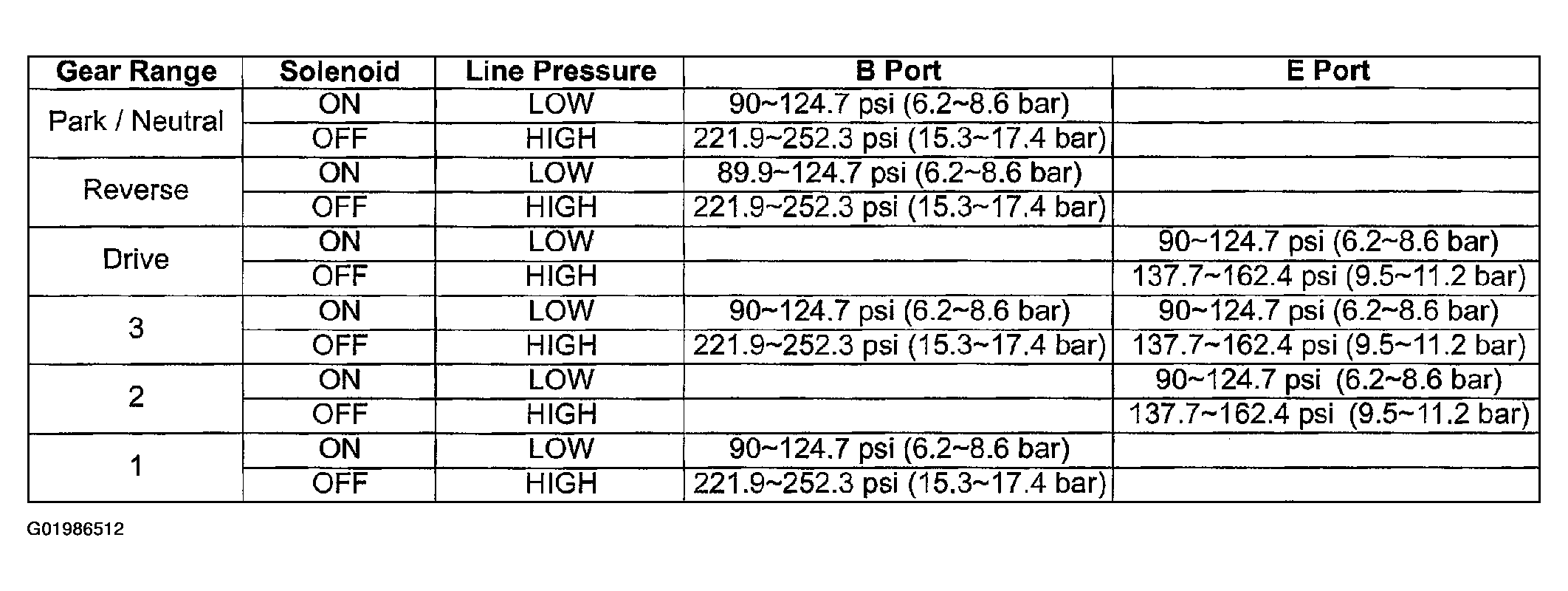

Fig 1: Line Pressure Table
Courtesy of SUZUKI OF AMERICA CORP.
Courtesy of SUZUKI OF AMERICA CORP.
