Transaxle Control Module: Removal

1. Disconnect the negative battery cable.
2. Disconnect the wiring connectors.
3. Remove the transaxle control module (TCM) and nuts. See Fig 1 .

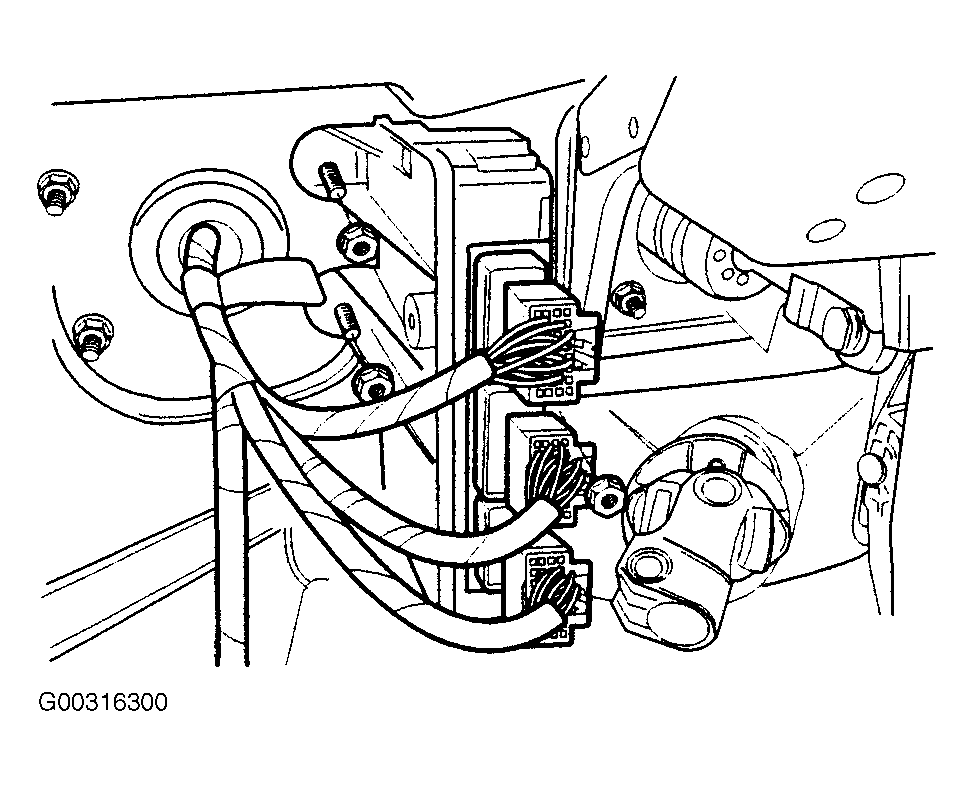

Fig 1: Removing/Installing Transaxle Control Module

Courtesy of SUZUKI OF AMERICA CORP.
