Outside Rearview Mirrors Installation

CAUTION: Dissimilar metals in direct contact with each other may corrode rapidly. Make sure to use the correct fasteners to prevent premature corrosion.

1. Install the outside rearview mirror assembly to the door with the screws.
   1. Tighten the outside rearview mirror assembly screws to 4.5 N.m (40 lb-in).
2. Connect the mirror electrical connector if the mirror is electronically controlled.
3. Install the front door escutcheon.

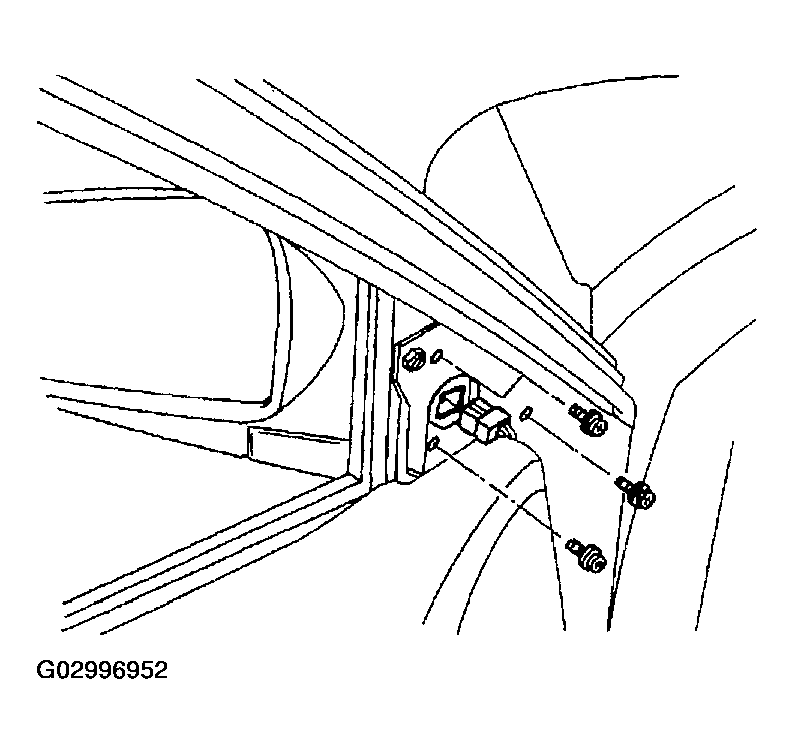

Fig 1: Tightening Outside Rearview Mirror Assembly

Courtesy of SUZUKI OF AMERICA CORP.
