Diagnostic Information and Procedures: Backfire: Definition

Fuel ignites in the intake manifold, or in the exhaust system, making a loud popping noise.

CAUTION: Before diagnosing the symptom, check service bulletins for updates.

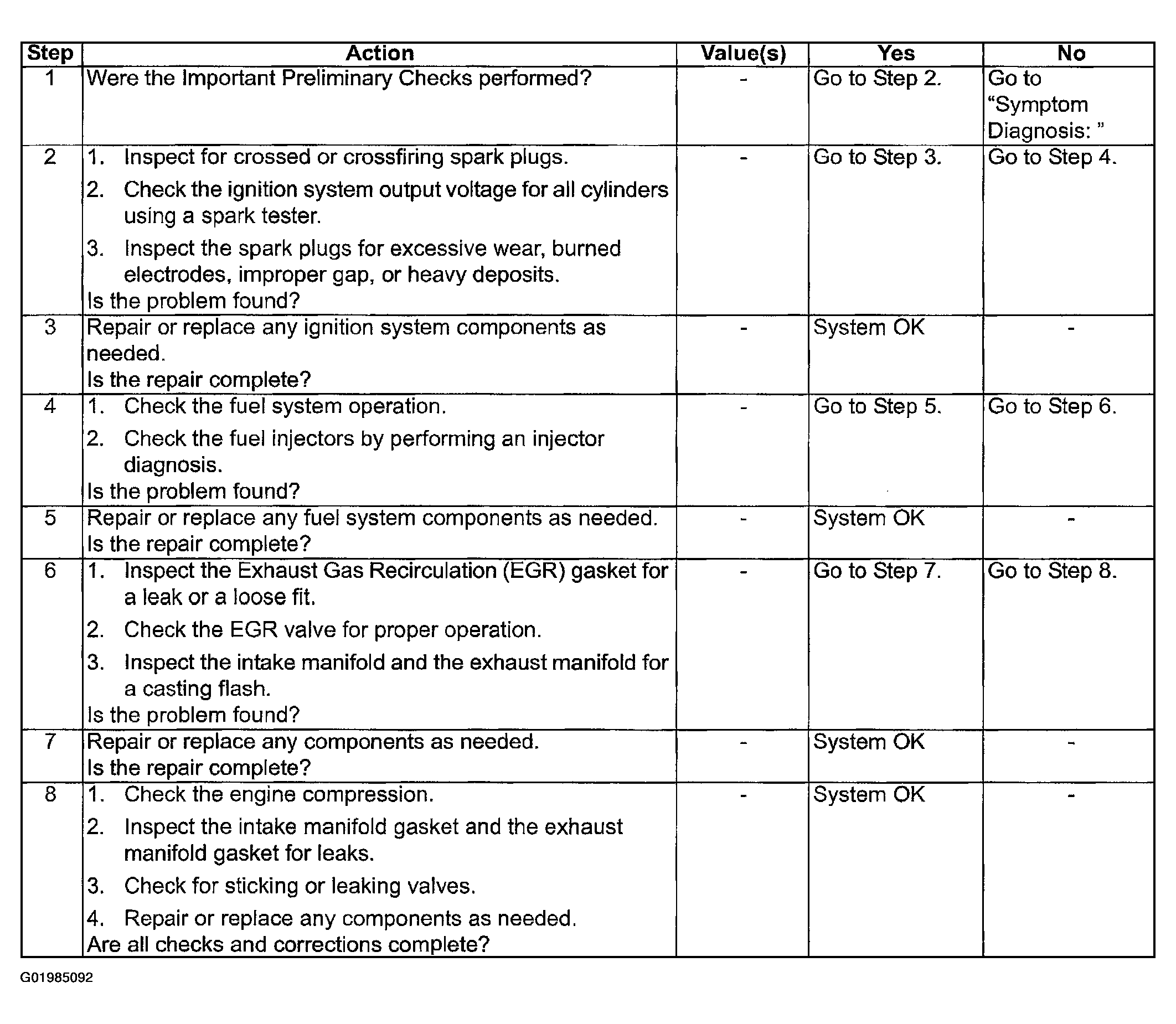

Fig 1: Backfire Diagnostic Chart
G01985092Courtesy of SUZUKI OF AMERICA CORP.
