DTC P0646: A/C Compressor Relay Low Input
›
Notes
DTC P0646: A/C Compressor Relay Low Input: Notes

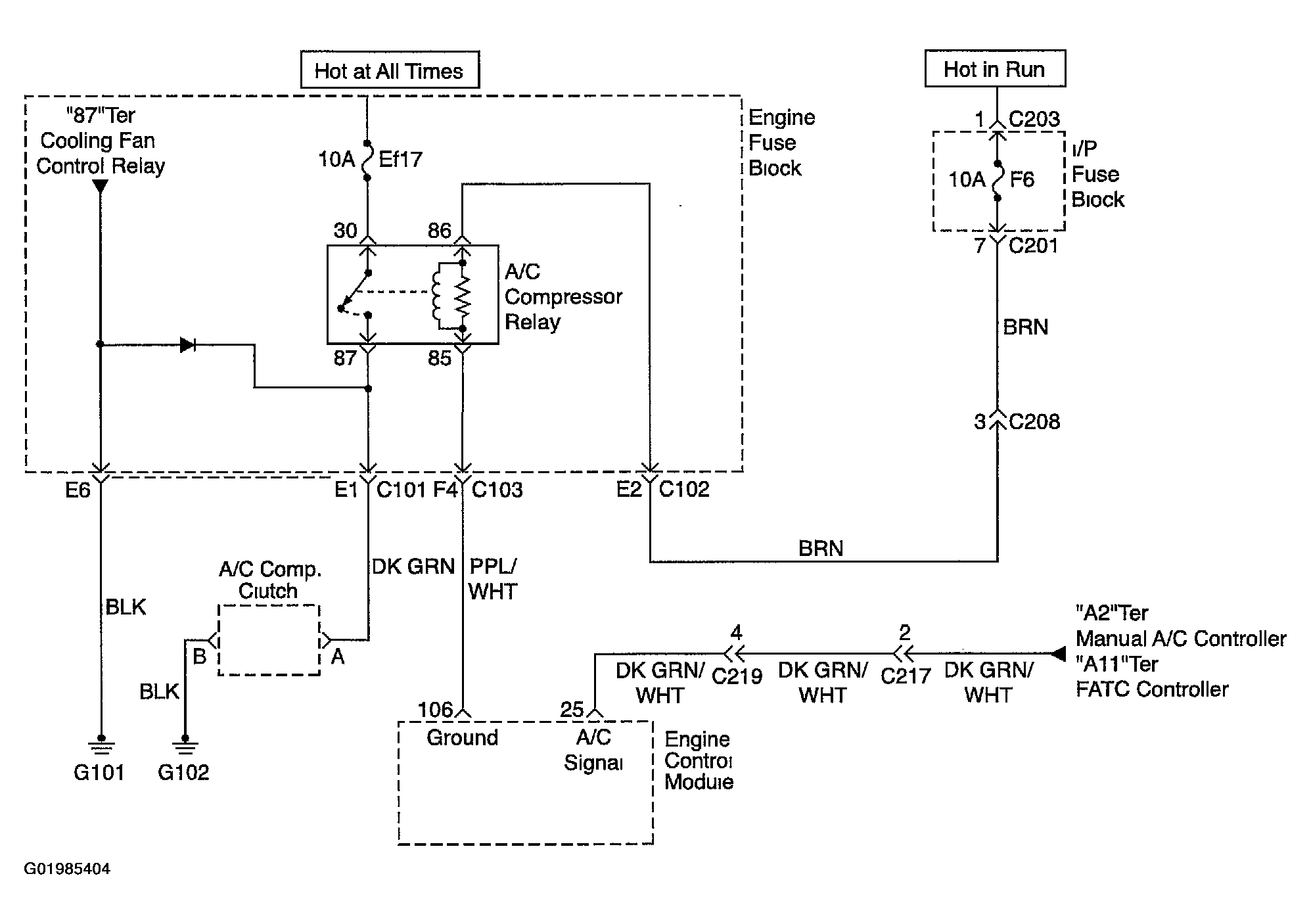

Fig 1: DTC P0646: A/C Compressor Relay Low Input - System Wiring Diagram
Courtesy of SUZUKI OF AMERICA CORP.
