DTC P1670: CAN Communication Error (No Message from ABS Module)
›
Notes
DTC P1670: CAN Communication Error (No Message from ABS Module): Notes

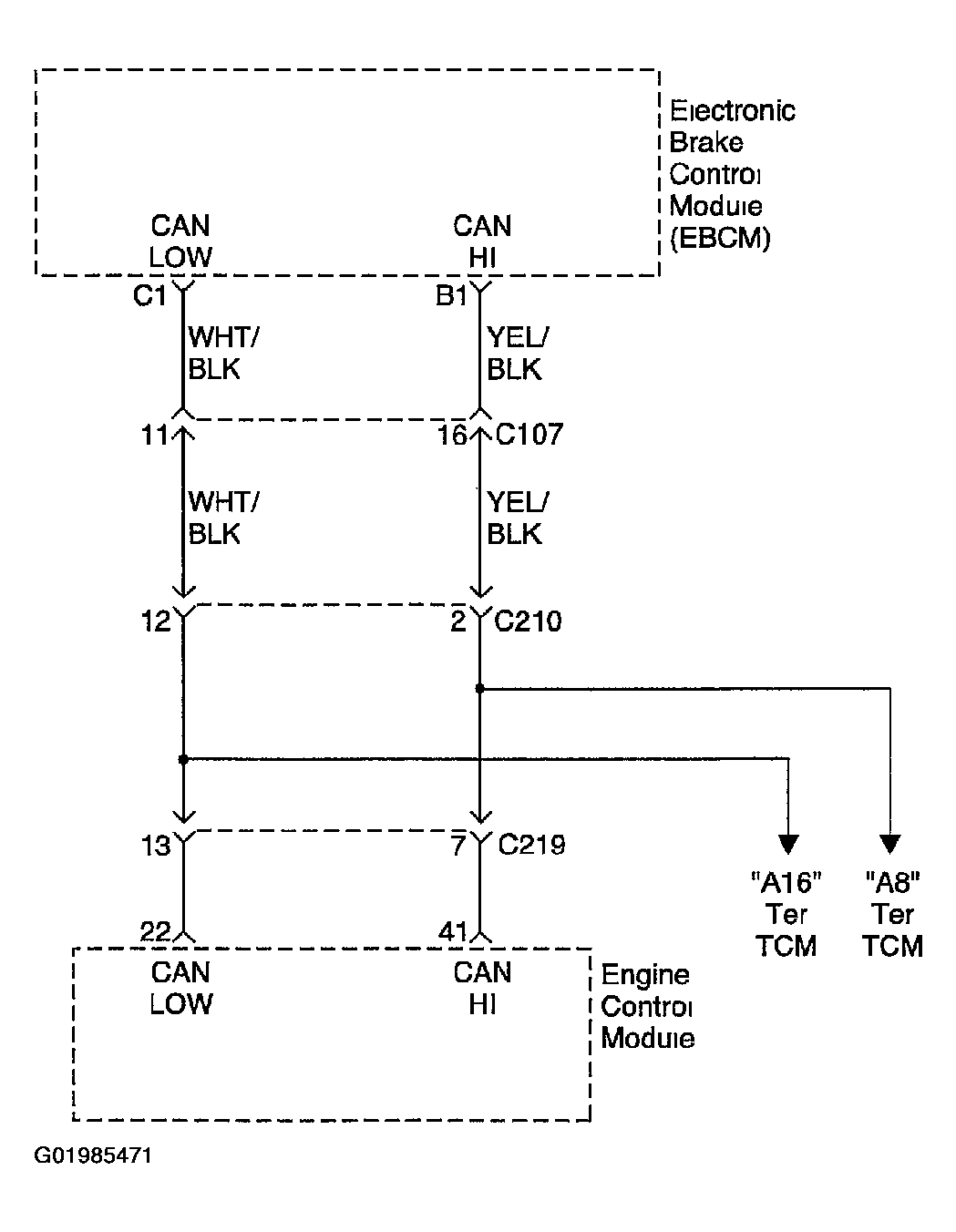

Fig 1: DTC P1670: CAN Communication Error (No Message from ABS Module) - System Wiring Diagram
Courtesy of SUZUKI OF AMERICA CORP.
Courtesy of SUZUKI OF AMERICA CORP.
