Engine Cooling Fan Circuit Check
›
Notes
Engine Cooling Fan Circuit Check: Notes

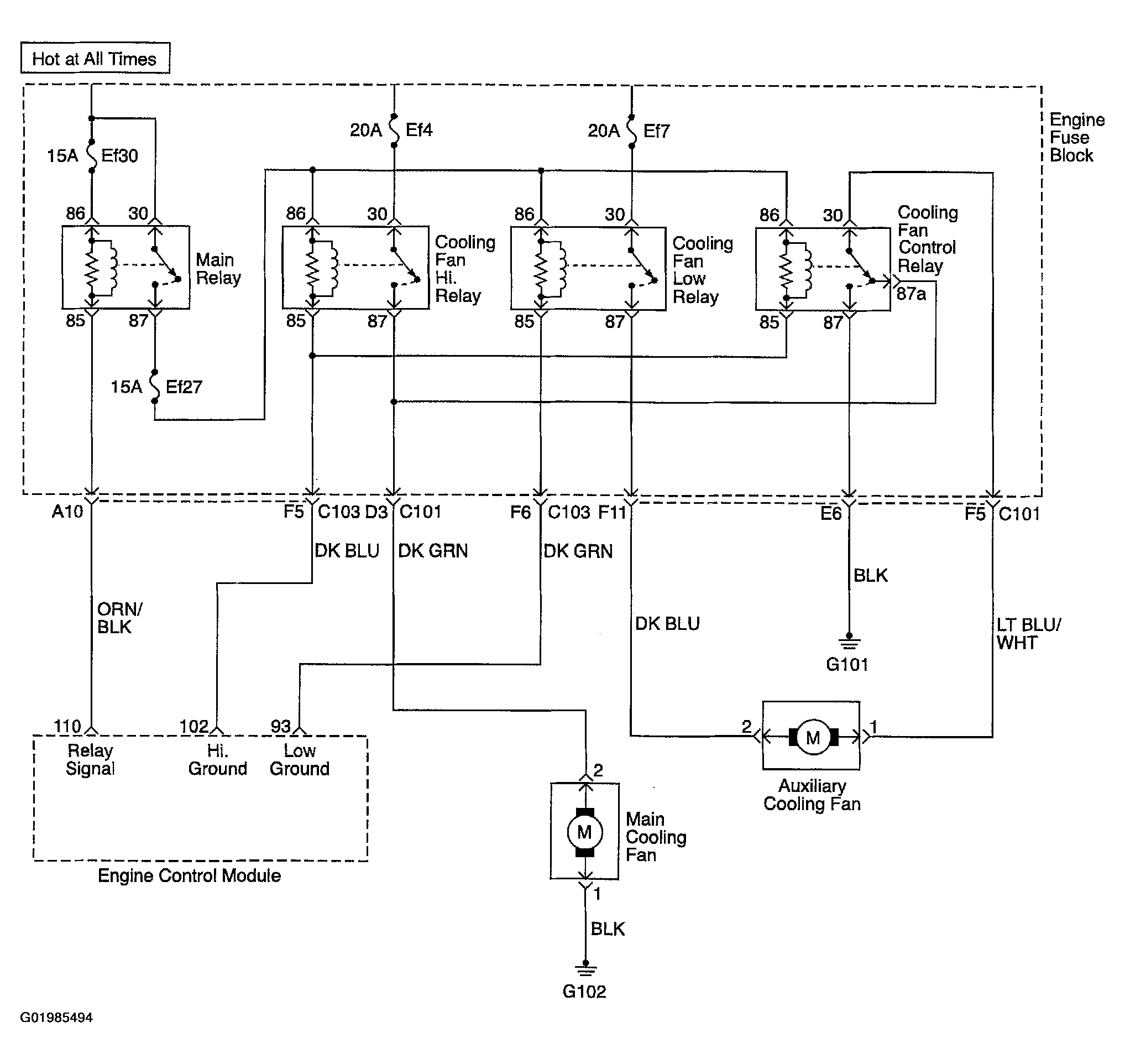

Fig 1: Engine Cooling Fan Circuit Check - System Wiring Diagram
Courtesy of SUZUKI OF AMERICA CORP.
Courtesy of SUZUKI OF AMERICA CORP.
