Diagnostic Aids

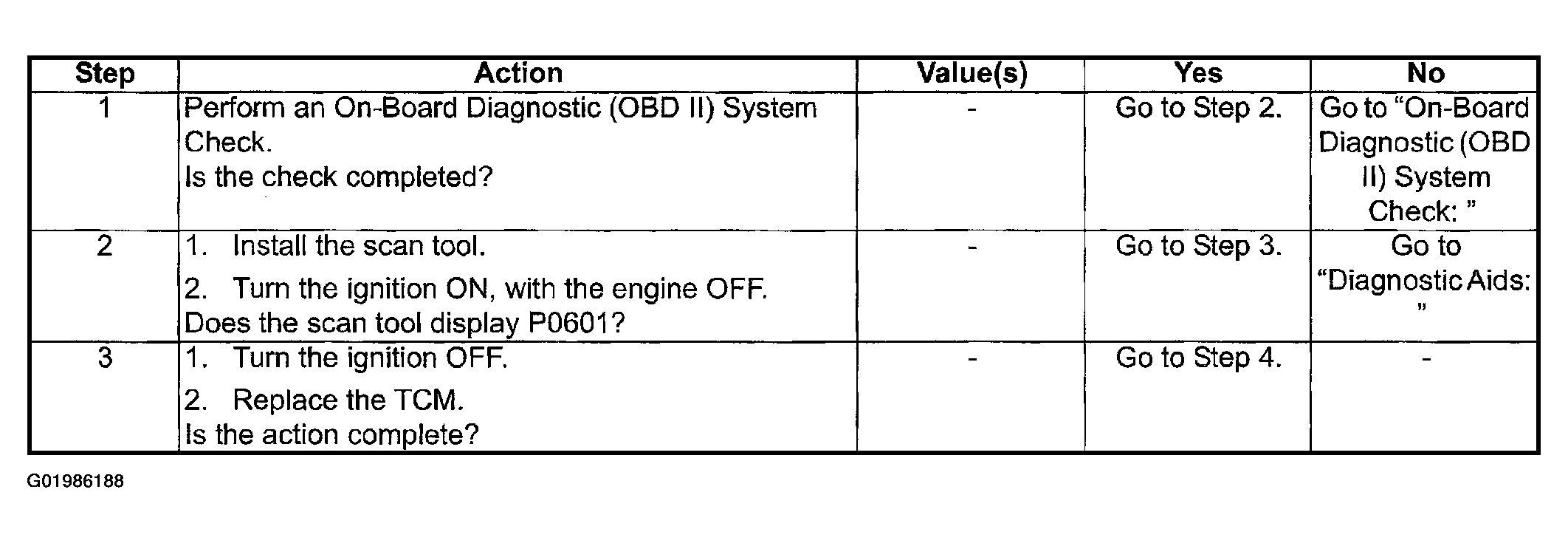

Fig 1: DTC P0601: Internal Control Module Memory Checksum Error Diagnostic Chart (1 Of 2)
G01986188Courtesy of SUZUKI OF AMERICA CORP.

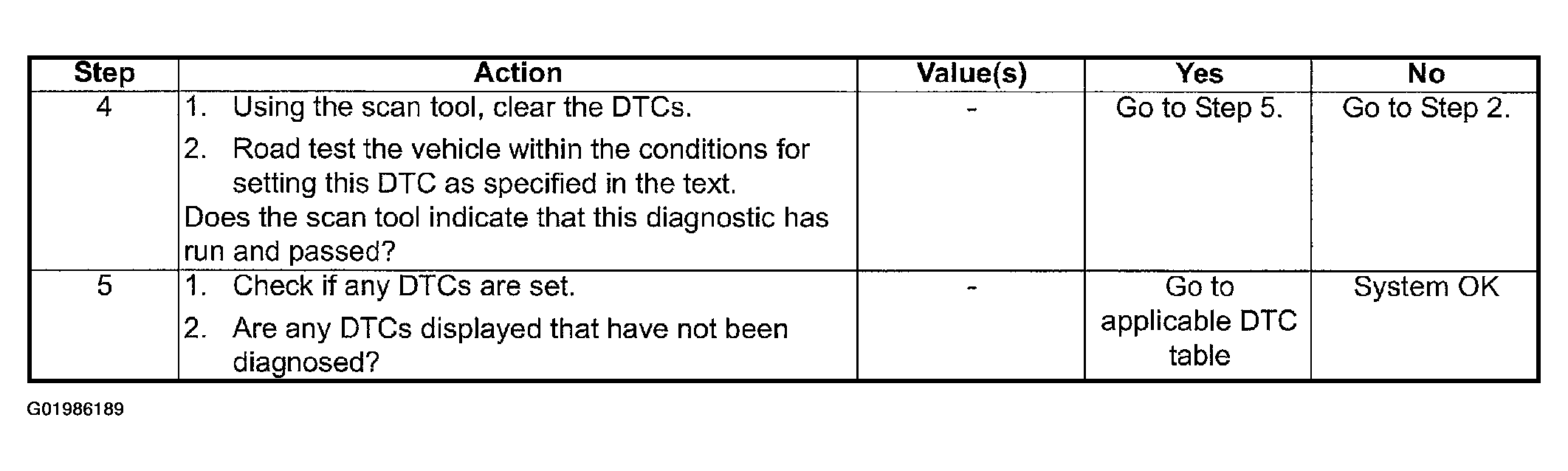

Fig 2: DTC P0601: Internal Control Module Memory Checksum Error Diagnostic Chart (2 Of 2)
G01986189Courtesy of SUZUKI OF AMERICA CORP.
