Toe-In Adjustment: Rear
- Measure toe-in and compare to WHEEL ALIGNMENT SPECIFICATIONS . If toe-in is not within specification, go to next step.

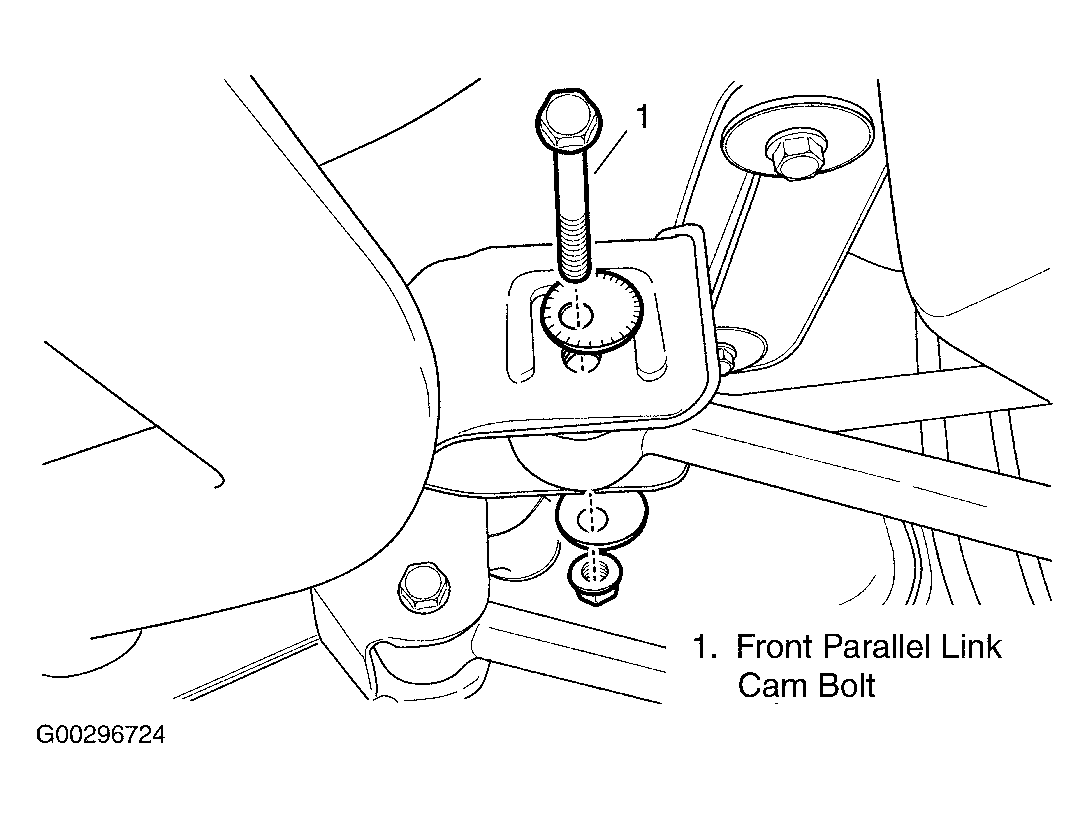

- Loosen front parallel link cam bolt to crossmember. See Fig 1 . Tighten front parallel link cam bolt to stage 1, see TORQUE SPECIFICATIONS . Adjust rear toe-in to specification. See WHEEL ALIGNMENT SPECIFICATIONS .
- After adjustment, finish tightening front parallel link cam bolt to stage 2. See TORQUE SPECIFICATIONS .
