Tightening Torque Specifications

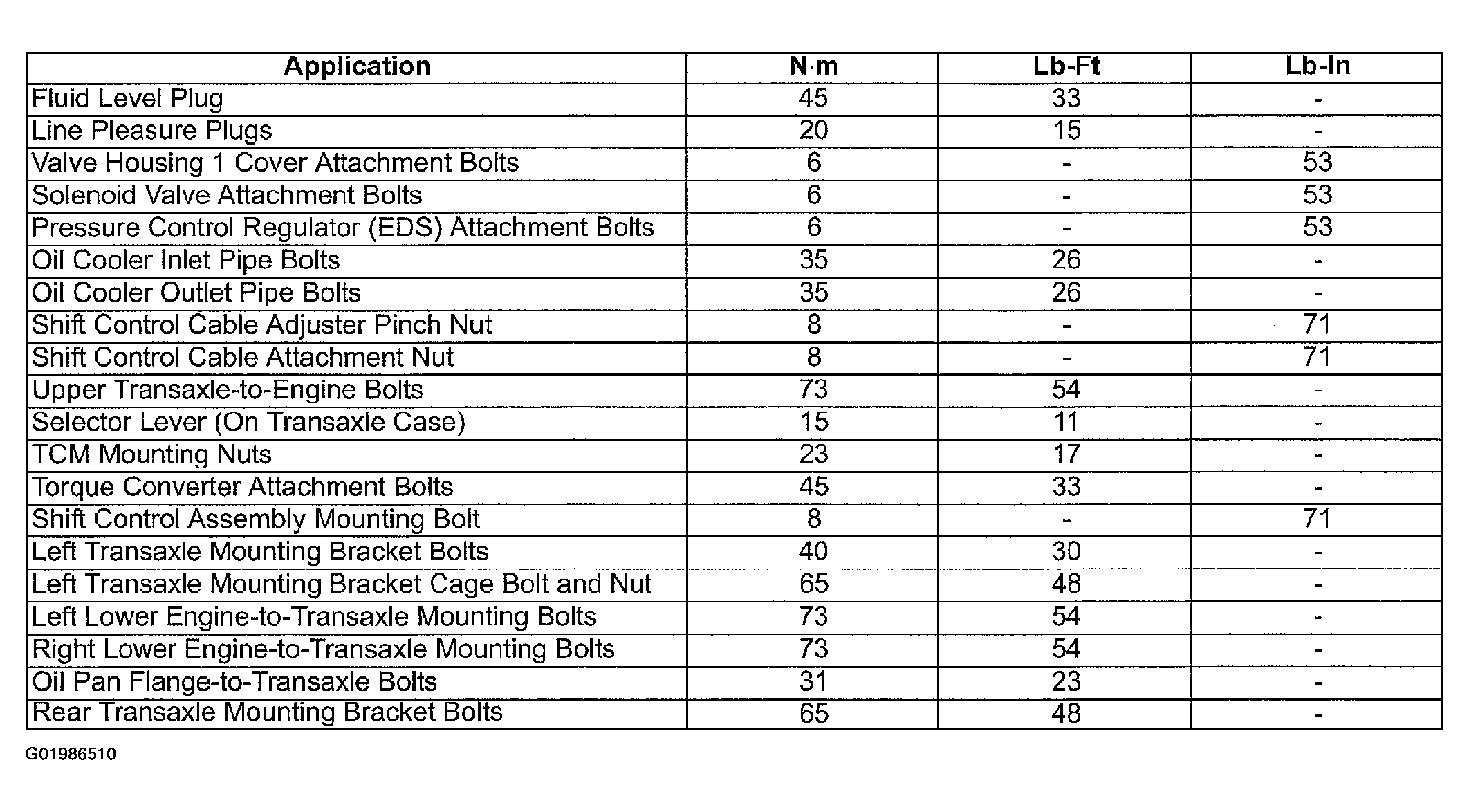

Fig 1: Tightening Torque Specifications Table (1 Of 2)

Courtesy of SUZUKI OF AMERICA CORP.

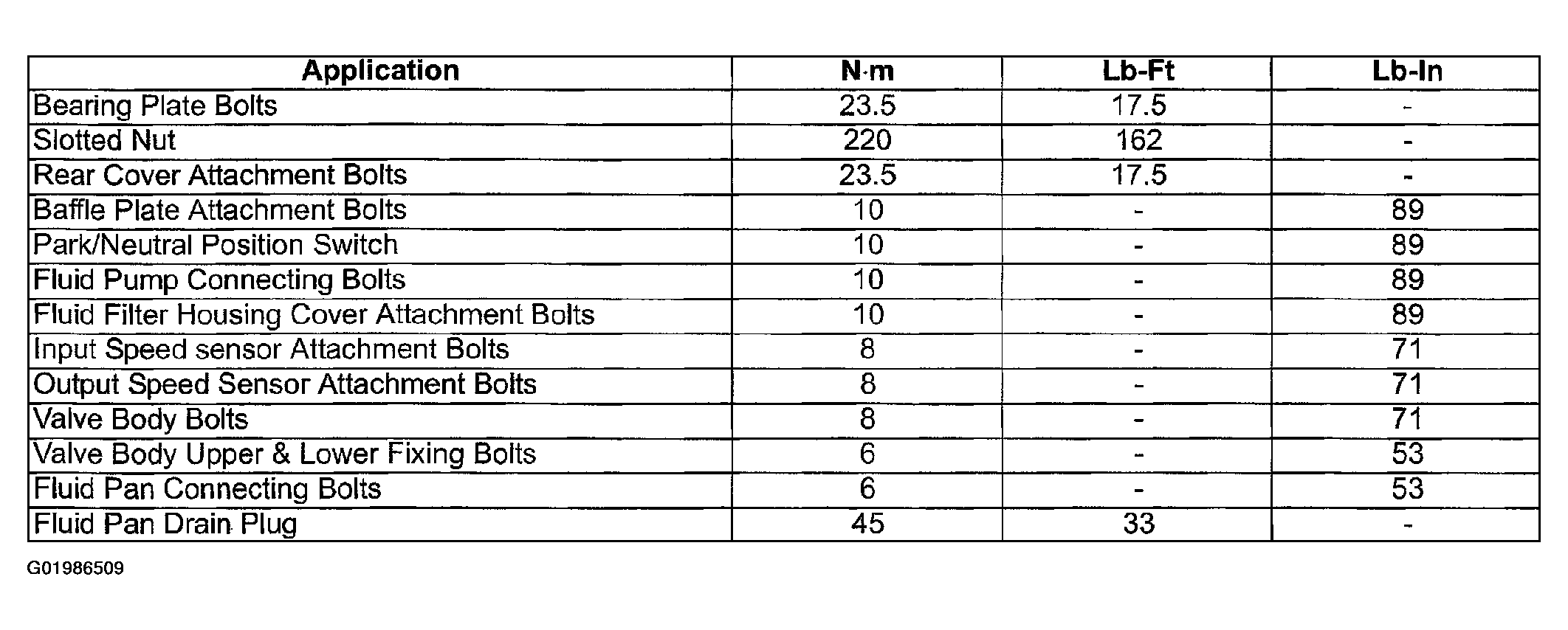

Fig 2: Tightening Torque Specifications Table (2 Of 2)

Courtesy of SUZUKI OF AMERICA CORP.
