A/C Condenser Fan Motor Relay Control System Check: Troubleshooting

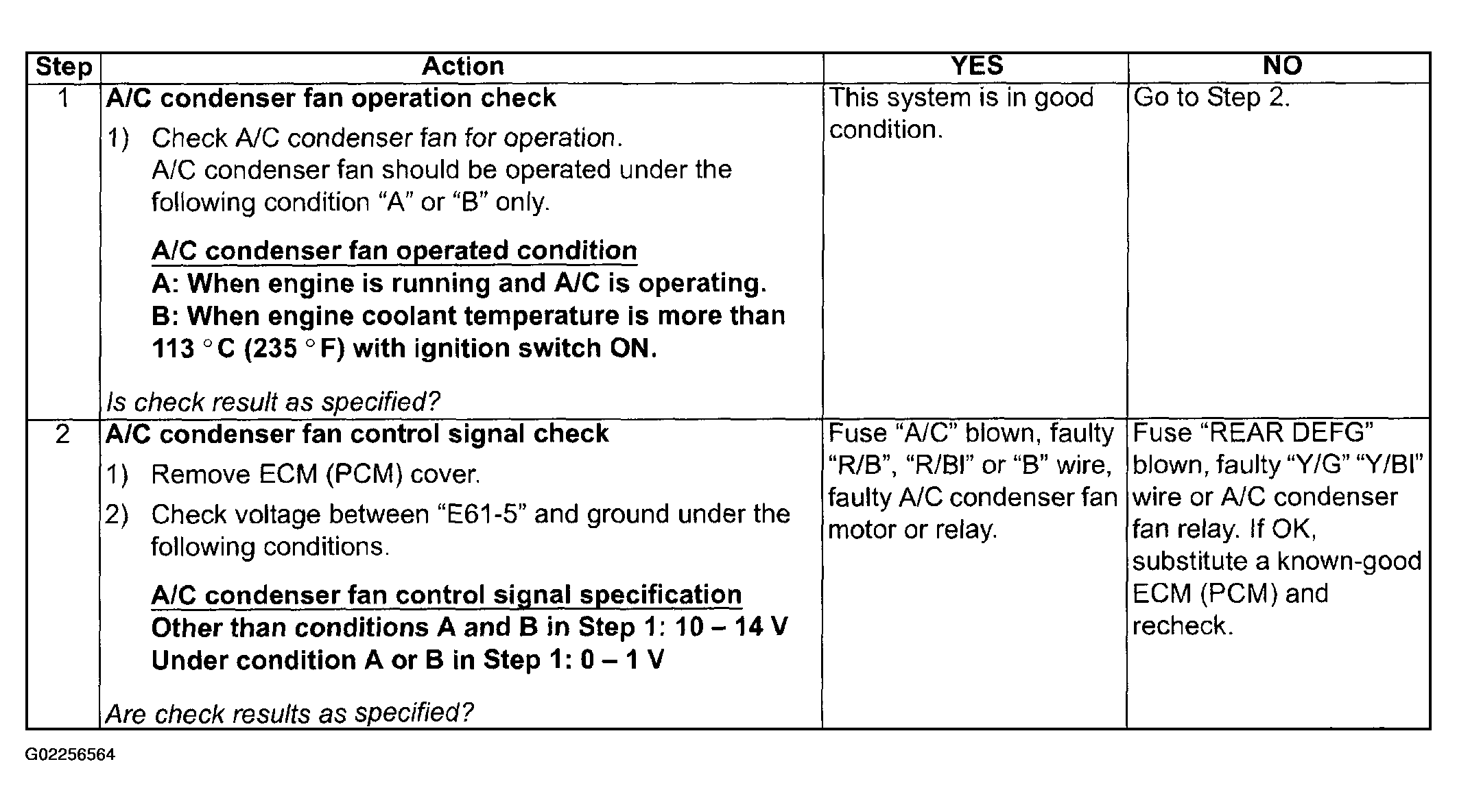

Fig 1: A/C Condenser Fan Motor Relay Control System Troubleshooting Chart
Courtesy of SUZUKI OF AMERICA CORP.
