Cruise Control System
›
General Description
›
Components and Functions of Cruise Control System
Components and Functions of Cruise Control System

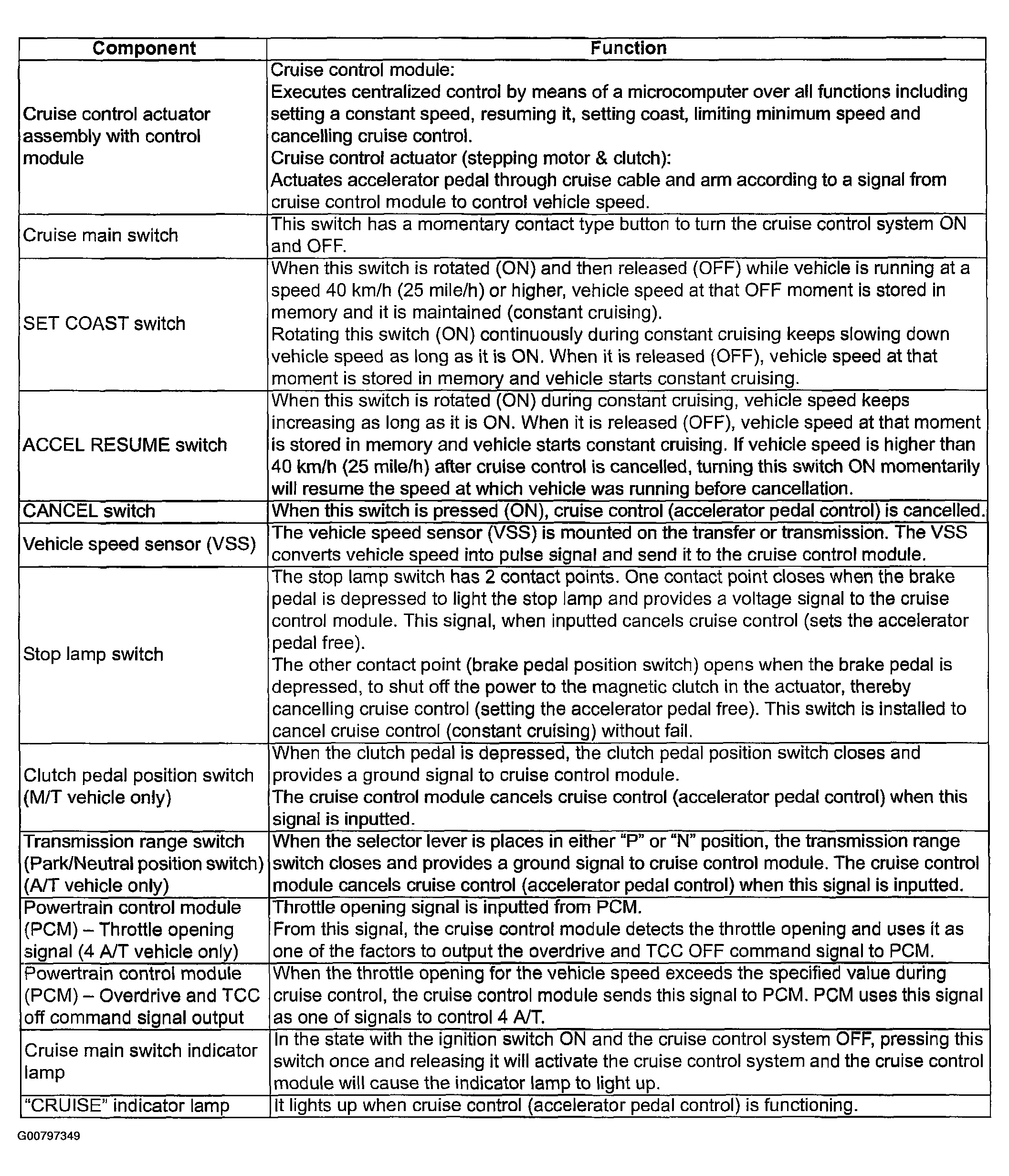

Fig 1: Cruise Control System Components Function Chart
Courtesy of SUZUKI OF AMERICA CORP.
Courtesy of SUZUKI OF AMERICA CORP.
