Throttle Body Components
Throttle Body Components

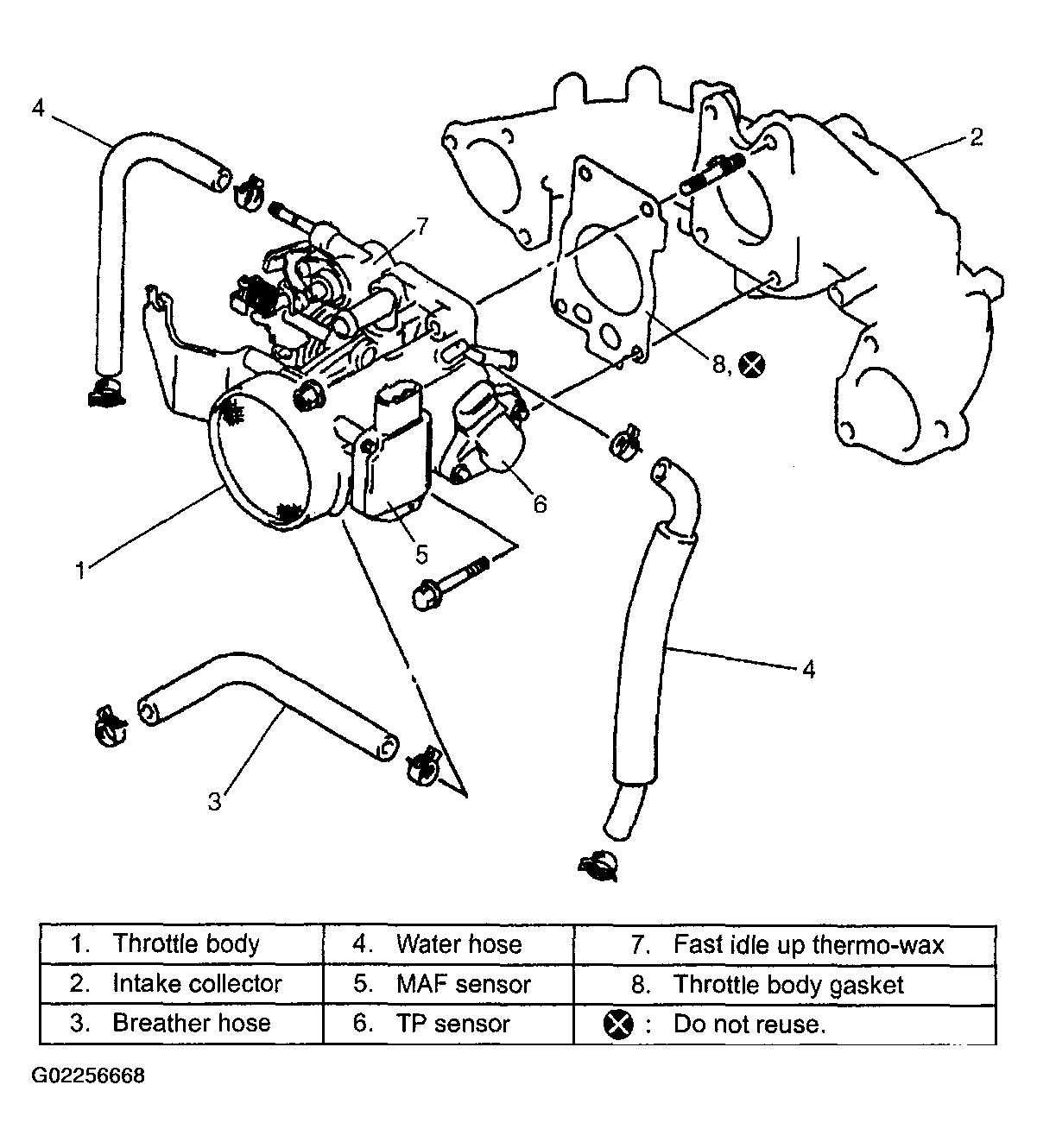

Fig 1: Identifying Throttle Body Components
Courtesy of SUZUKI OF AMERICA CORP.
Courtesy of SUZUKI OF AMERICA CORP.
