Tightening Torque Specifications

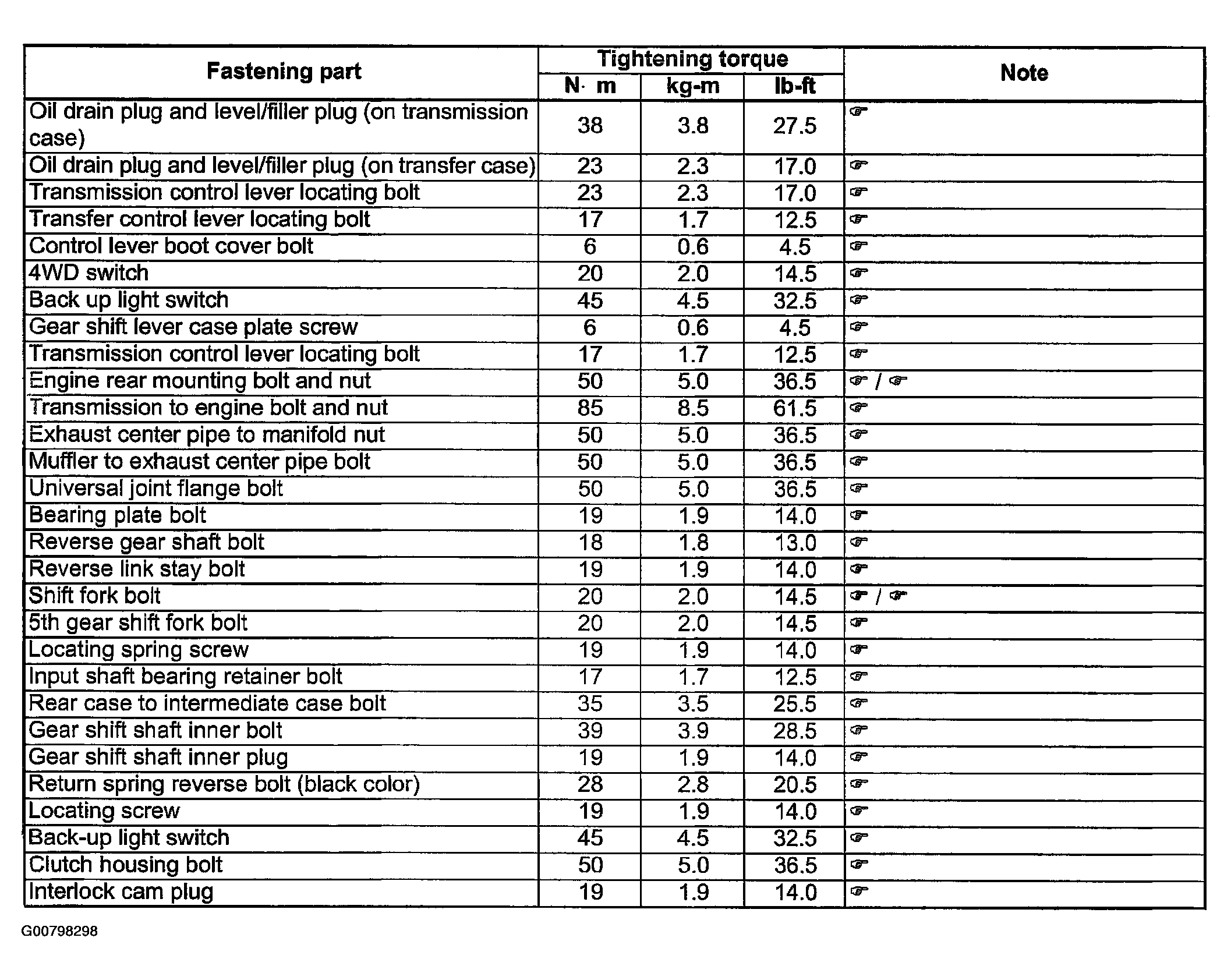

Fig 1: Fastening Part Tightening Torque Specifications Chart

Courtesy of SUZUKI OF AMERICA CORP.

Reference:

For the tightening torque of fastener not specified in this section, refer to appropriate article .
