Suzuki
›
2004
›
Vitara RWD, Automatic
›
Repair and Diagnosis
›
Engine Mechanical
›
Engine Lubrication System
›
Repair Instructions
›
Oil Pump Components
Oil Pump Components

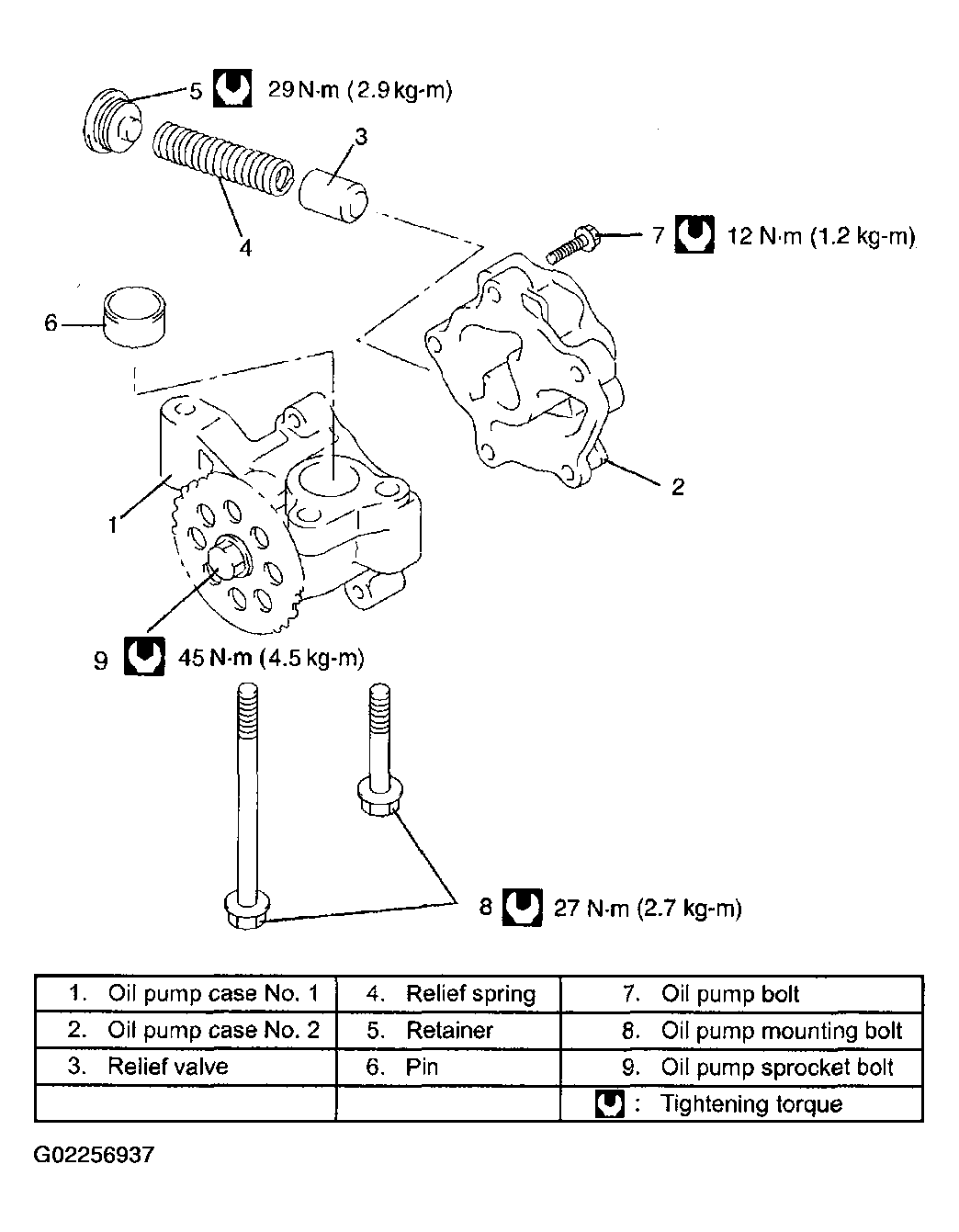

Fig 1: Identifying Oil Pump Components
Courtesy of SUZUKI OF AMERICA CORP.
Courtesy of SUZUKI OF AMERICA CORP.
