Engine and Emission Control Input / Output Table
Engine and Emission Control Input / Output Table

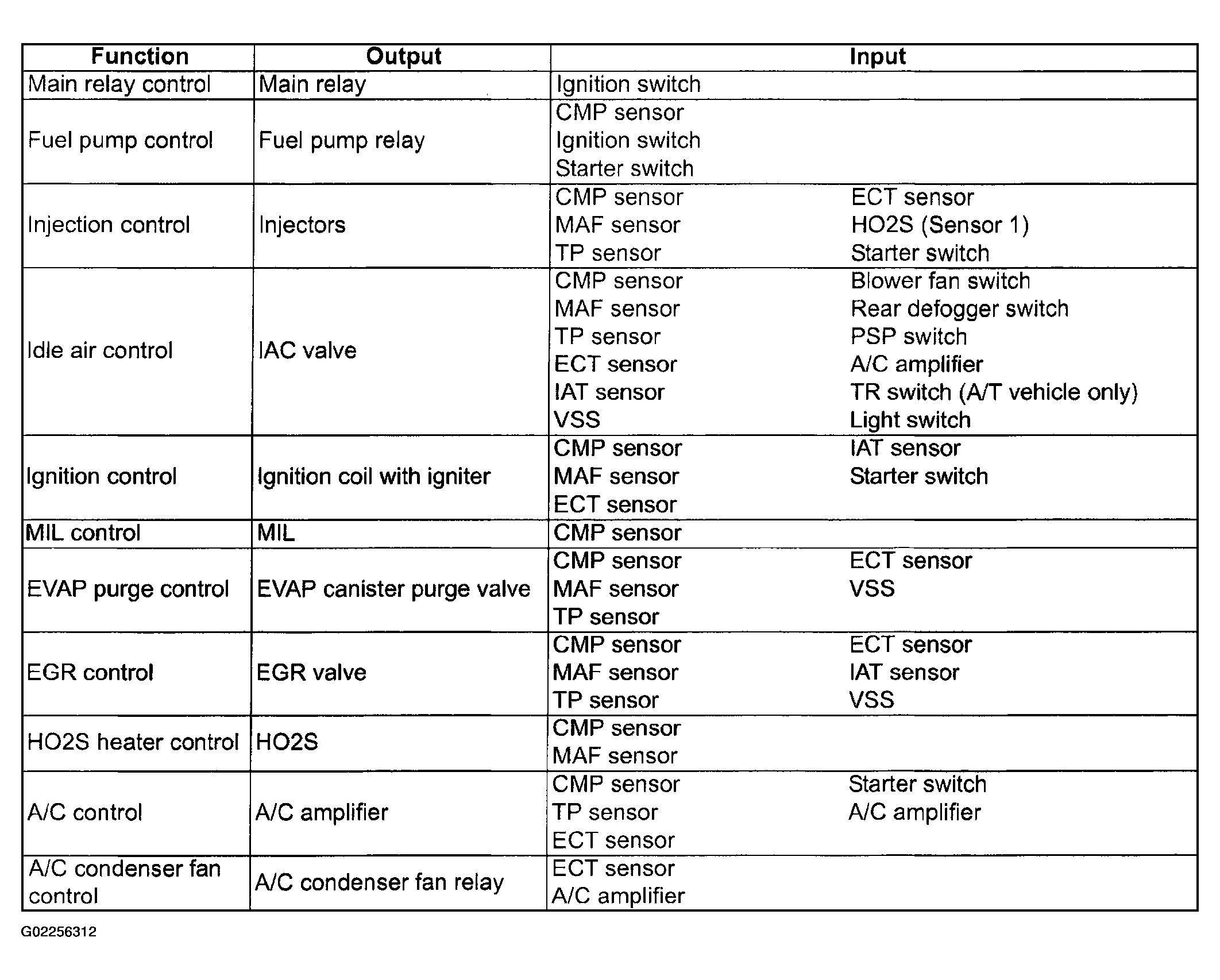

Fig 1: Engine & Emission Control Input / Output Table
Courtesy of SUZUKI OF AMERICA CORP.
