Spark Plug Removal and Installation: Removal

  1. For H25 engine, remove ignition coil cover.
  2. Disconnect ignition coil coupler.
  3. Remove ignition coil bolt (1), and then pull out ignition coil assembly (2).
  4. Remove spark plug (3).

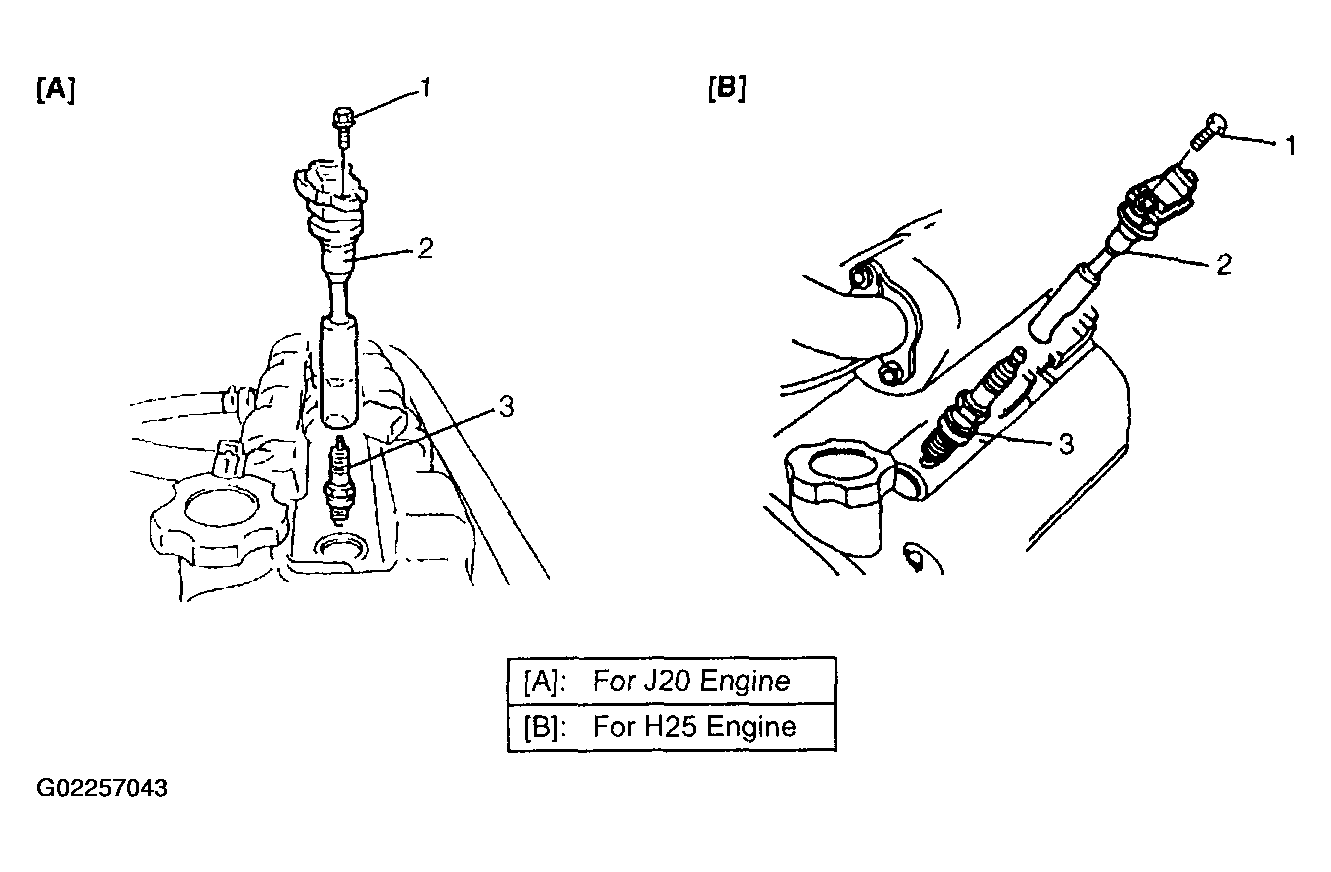

    Fig 1: Removing Spark Plug
    G02257043Courtesy of SUZUKI OF AMERICA CORP.
