Ignition System Wiring Circuit

NOTE: For ECM (PCM) terminal assignment, refer to ENGINE DIAGNOSIS GENERAL DESCRIPTION .

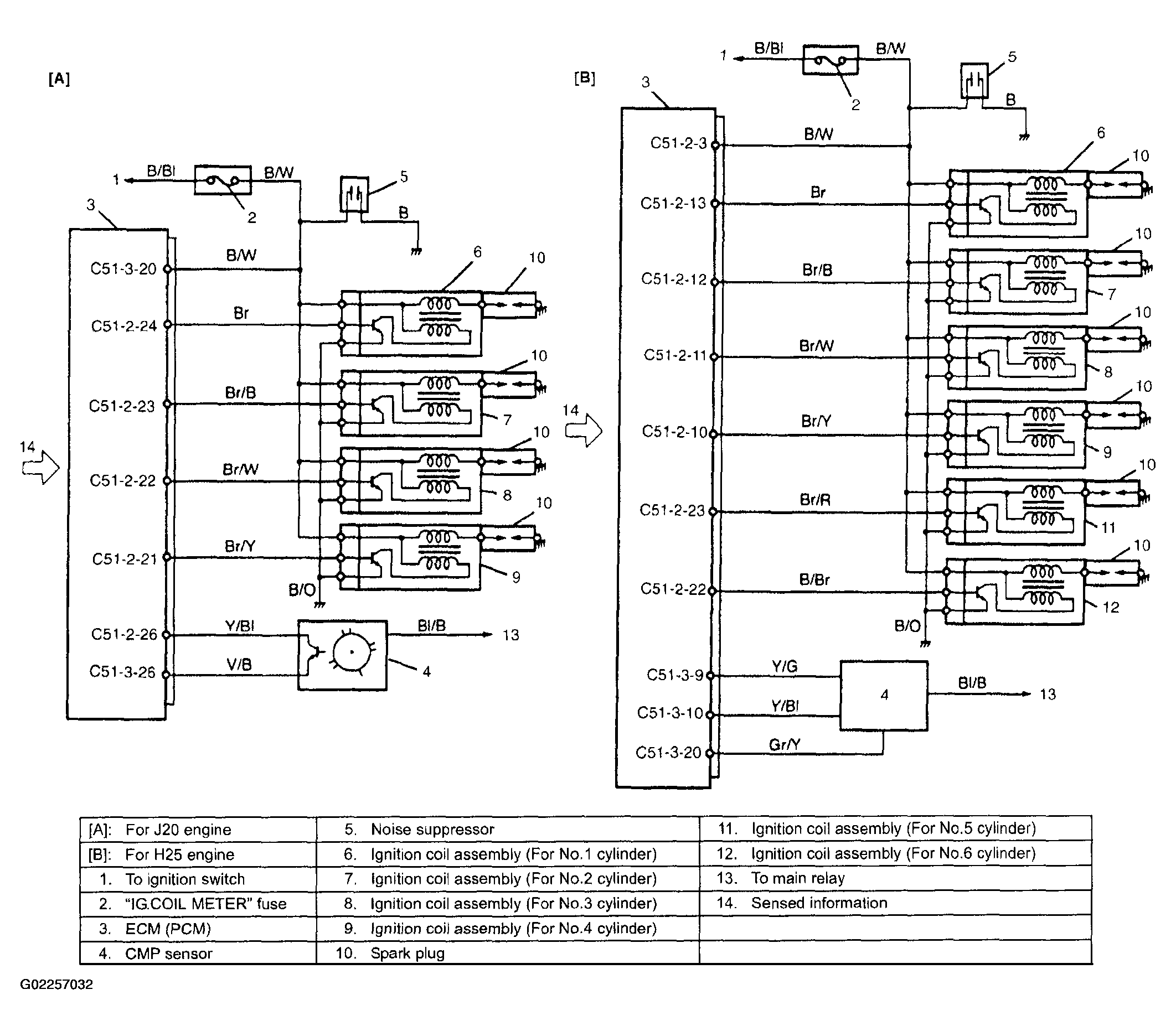

Fig 1: Ignition System Wiring Circuit Schematic And Routing Diagram

Courtesy of SUZUKI OF AMERICA CORP.
