P/S Pump Construction: Components

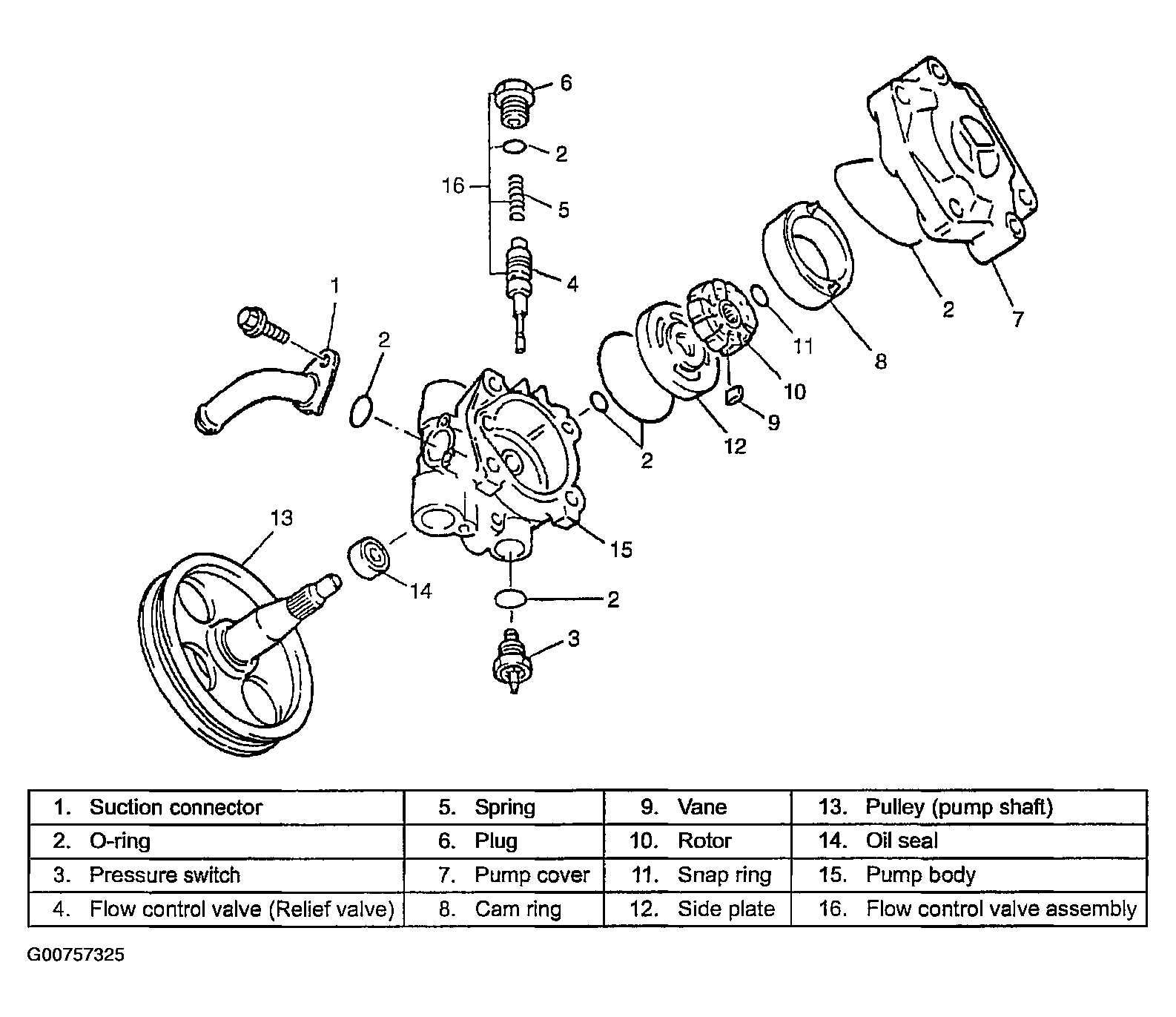

Fig 1: Identifying Power Steering Pump Construction

Courtesy of SUZUKI OF AMERICA CORP.

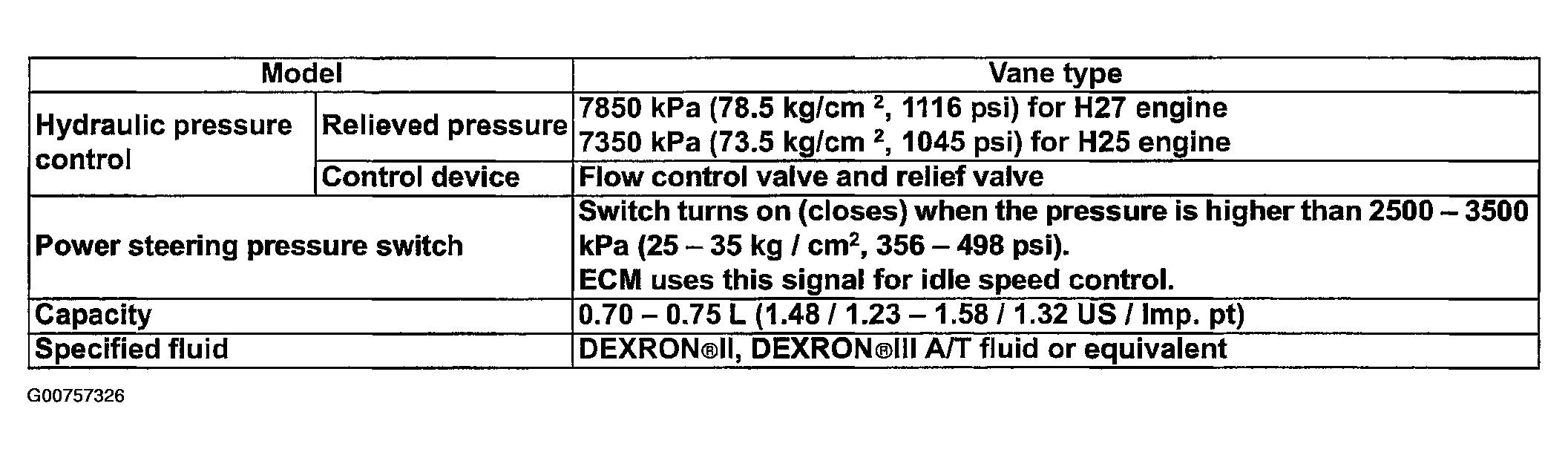

Fig 2: Power Steering Pump Specifications Chart

Courtesy of SUZUKI OF AMERICA CORP.
