Scan Tool Data

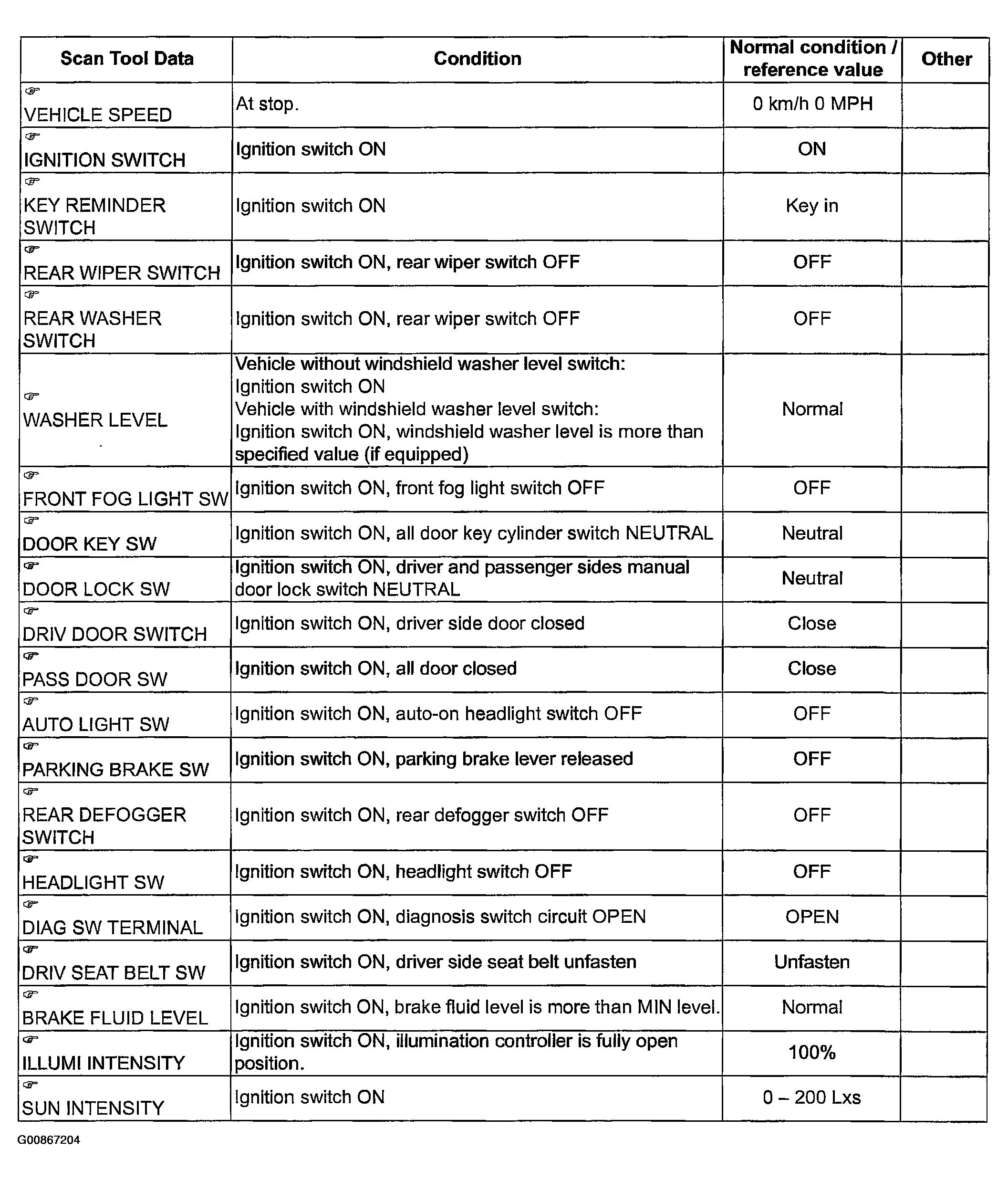

Fig 1: Identifying BCM System Scan Tool Data
Courtesy of SUZUKI OF AMERICA CORP.
Courtesy of SUZUKI OF AMERICA CORP.
