Exhaust System Components

NOTE: H25 Engine refers to Grand Vitara, H27 Engine refers to XL-7.

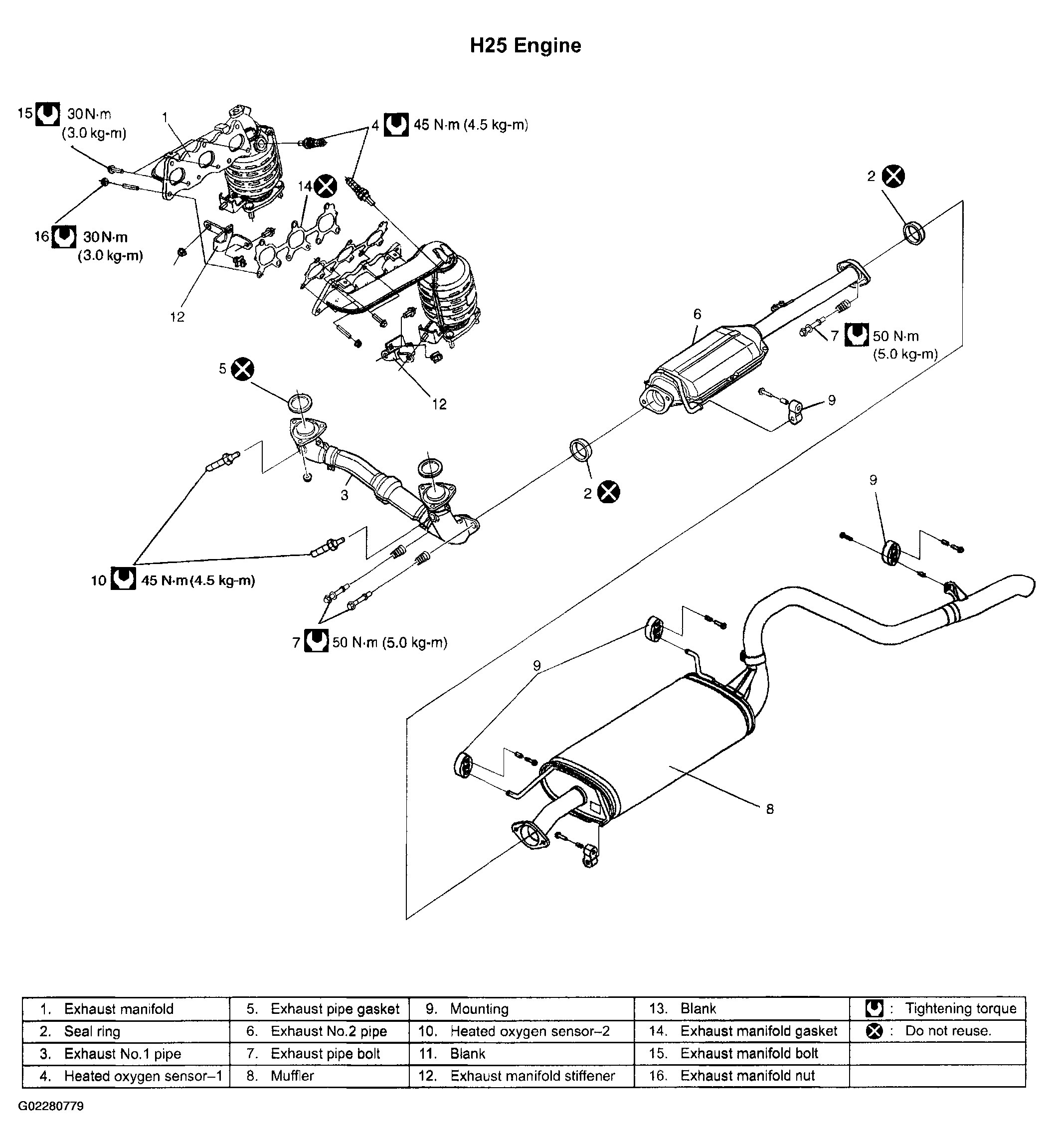

Fig 1: Exploded View Of Exhaust System Components (H25 Engine)

Courtesy of SUZUKI OF AMERICA CORP.

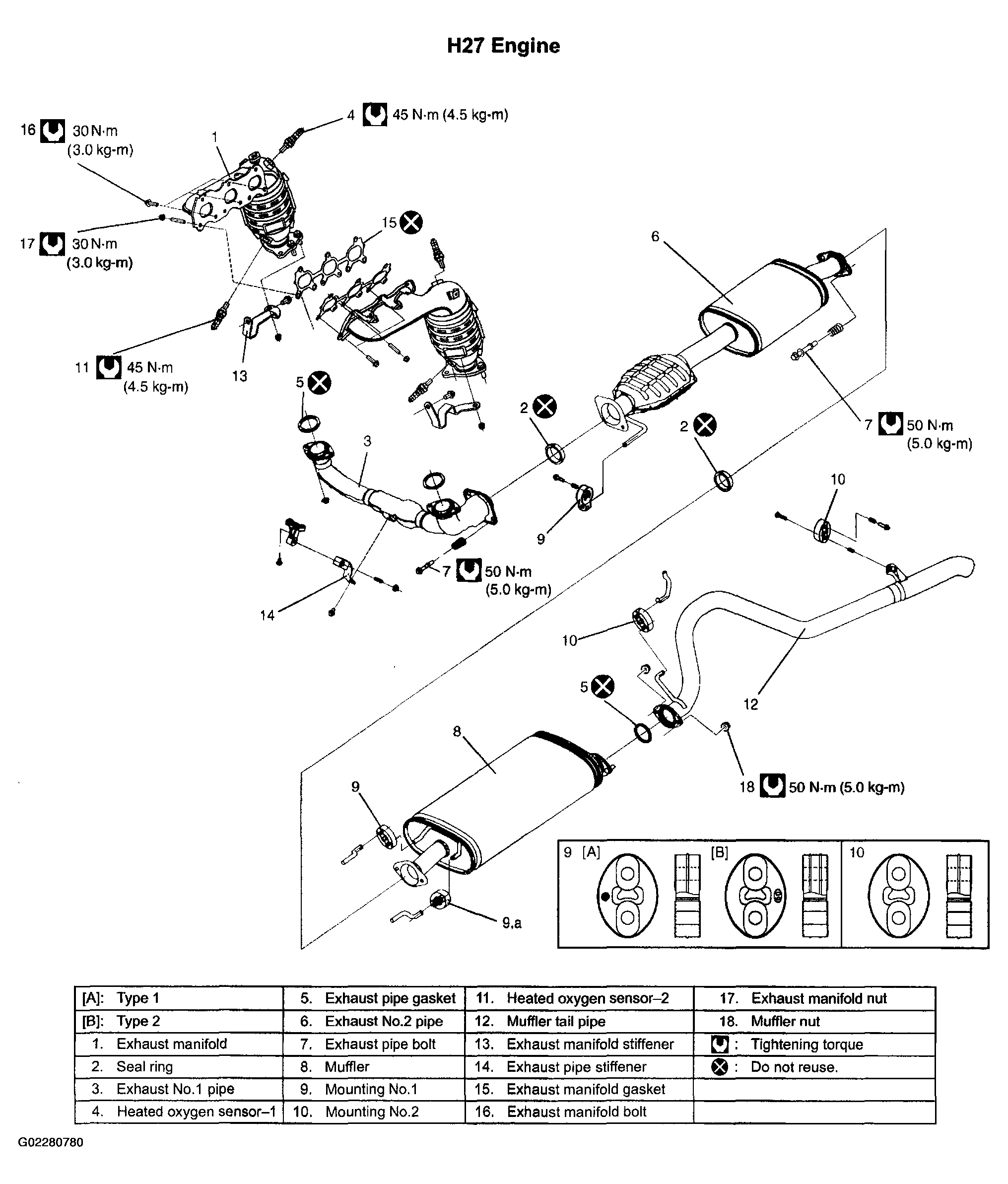

Fig 2: Exploded View Of Exhaust System Components (H27 Engine)

Courtesy of SUZUKI OF AMERICA CORP.
