Engine & Emission Control System Check: Notes

Refer to the following items for the detail of each step.

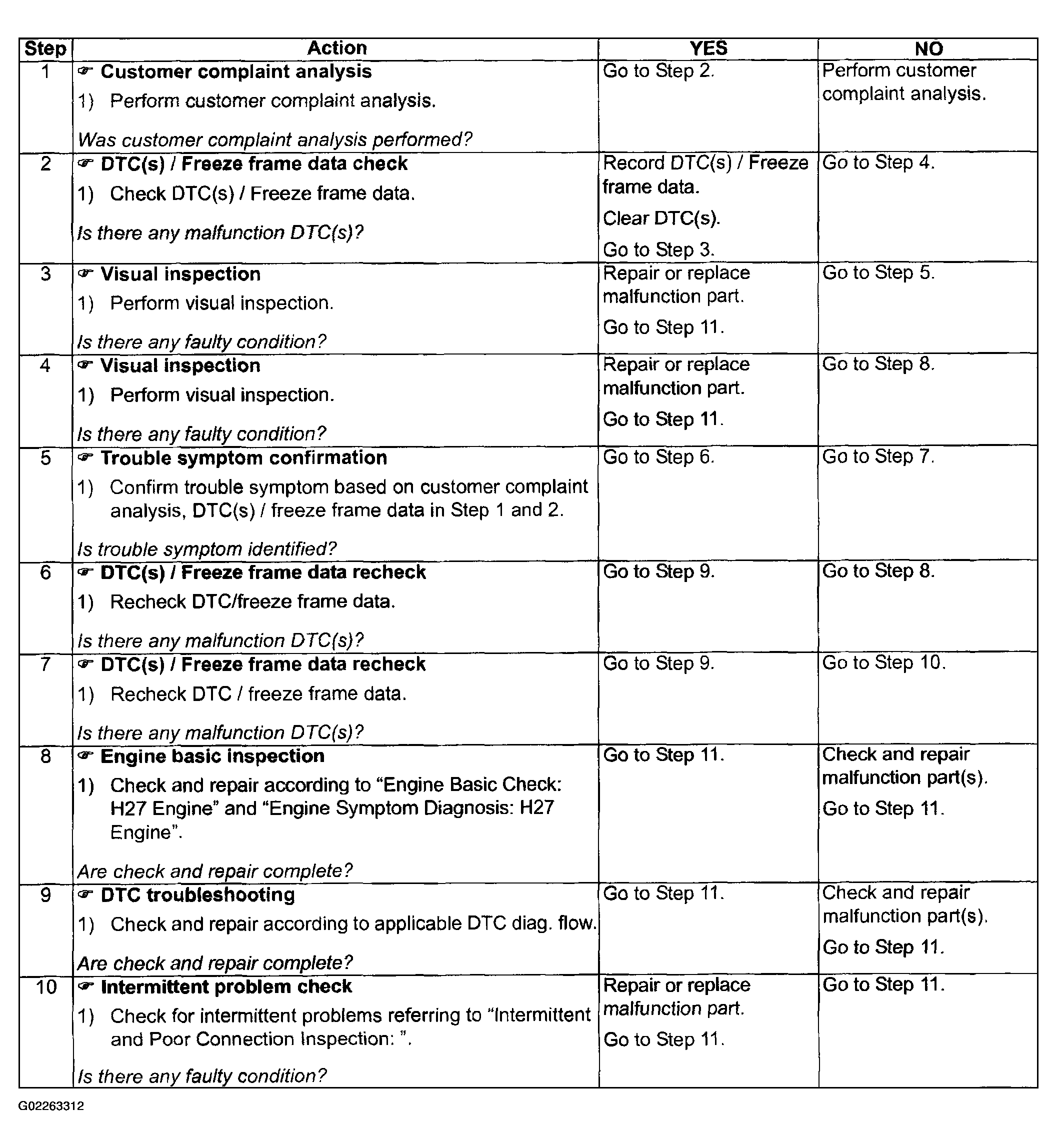

Fig 1: Engine & Emission Control System Check (1 Of 2)

Courtesy of SUZUKI OF AMERICA CORP.

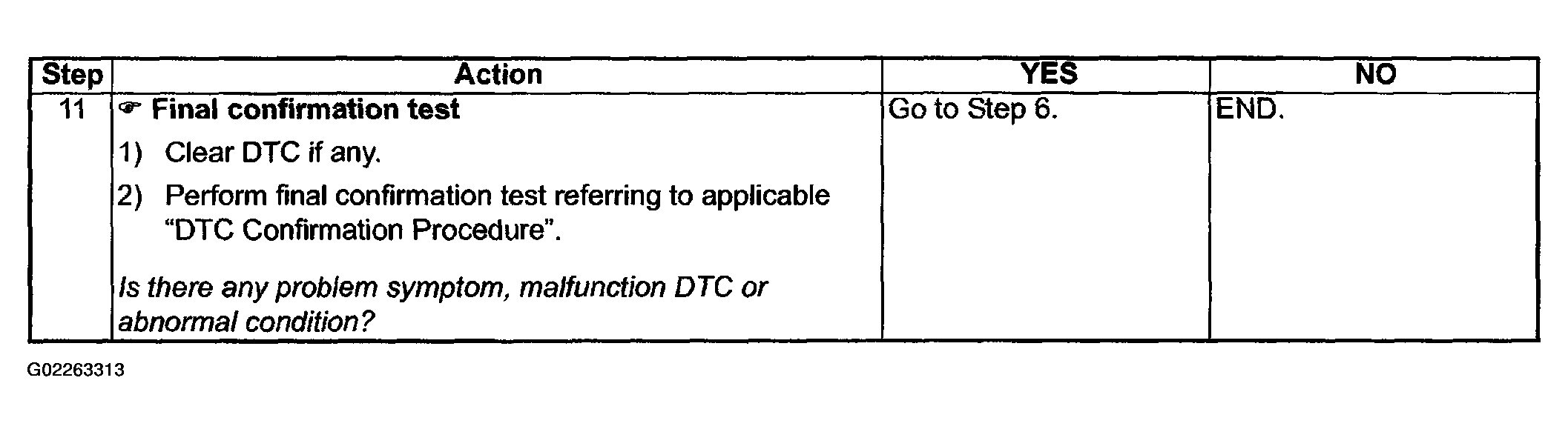

Fig 2: Engine & Emission Control System Check (2 Of 2)

Courtesy of SUZUKI OF AMERICA CORP.
