XL-7 EX, RWD
›
Repair and Diagnosis
›
Engine Performance
›
Fuel Delivery
›
Fuel System
›
Repair Instructions
›
Fuel System Components
Fuel System Components

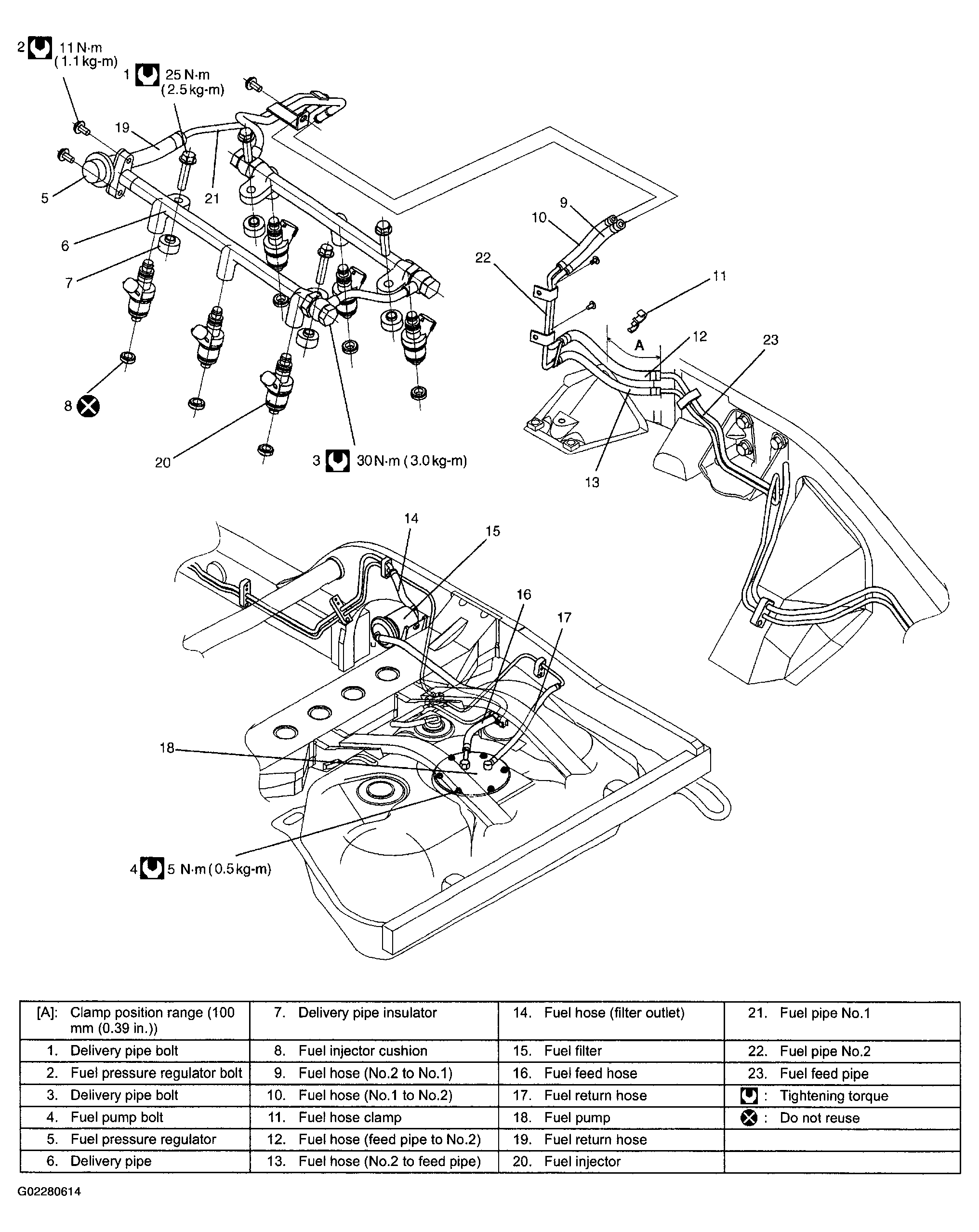

Fig 1: Identifying Fuel System Components (Rear)
Courtesy of SUZUKI OF AMERICA CORP.

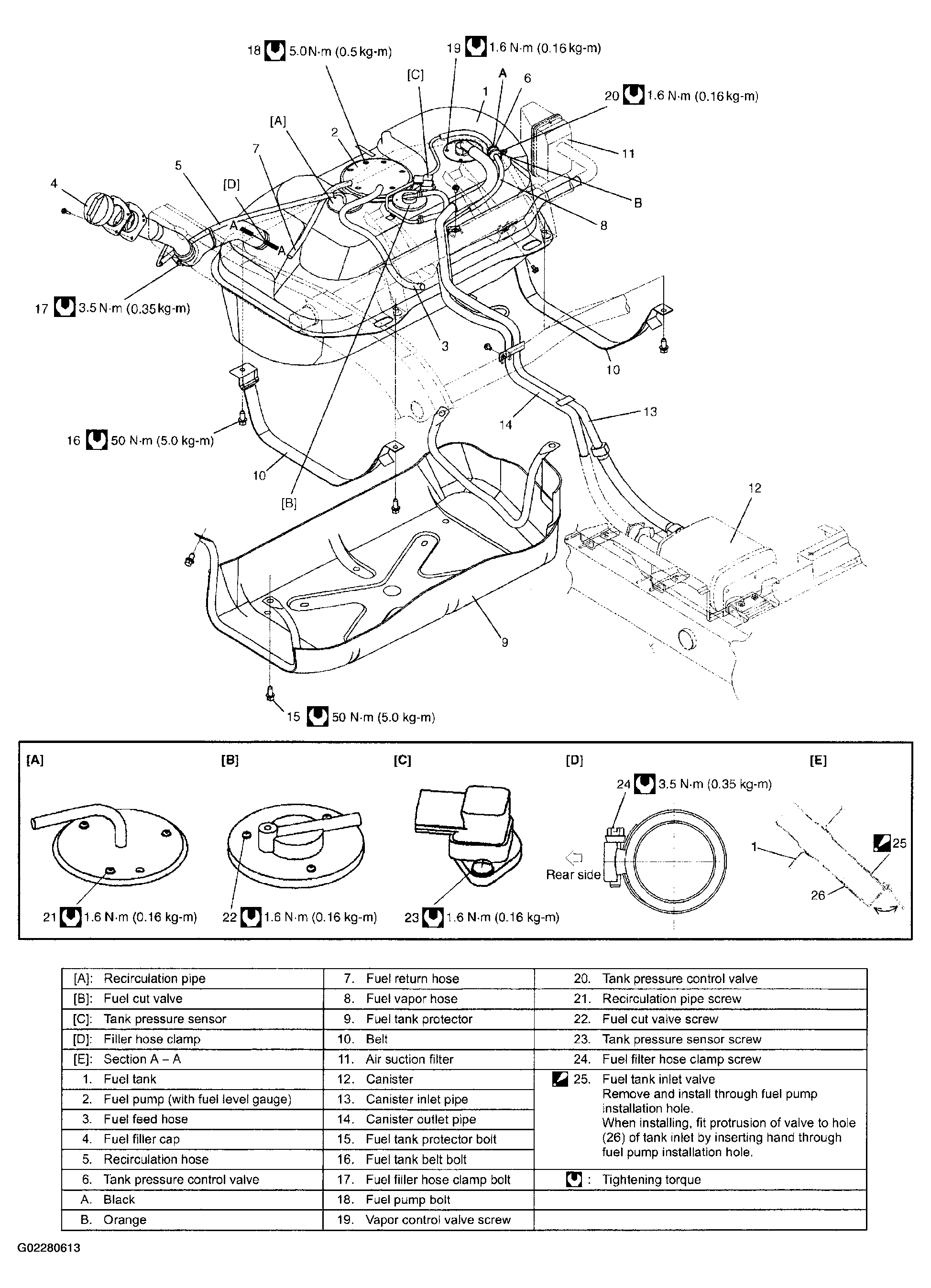

Fig 2: Identifying Fuel System Components (Front)
Courtesy of SUZUKI OF AMERICA CORP.
Courtesy of SUZUKI OF AMERICA CORP.
Courtesy of SUZUKI OF AMERICA CORP.
